Rear Assist Arm: Installation

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear assist arm (A) mounting nut (B) to the cross member.
Tightening torque Nm (kgf.m, lb-ft):

90-120 (9-12, 65.1-86.8)

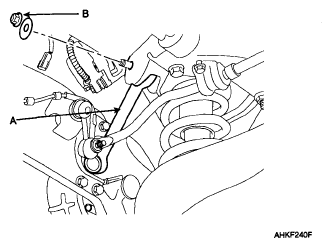

Fig 1: Identifying Rear Assist Arm And Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the rear assist arm (A) ball joint self-locking nut (B) and the cotter pin.
Tightening torque Nm (kgf.m, lb-ft):

160-180 (16-18, 115.7-130.2)

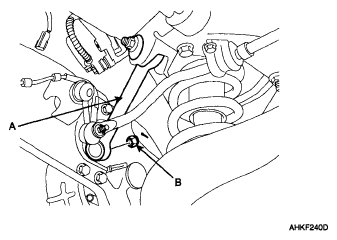

Fig 2: Identifying Rear Assist Arm, Ball Joint Self-Locking Nut And Cotter Pin
Courtesy of KIA MOTORS AMERICA, INC.
Install the brake caliper mounting bolts (A).
Tightening torque Nm (kgf.m, lb-ft):

50-60 (5.0-6.0, 36.2-43.4)

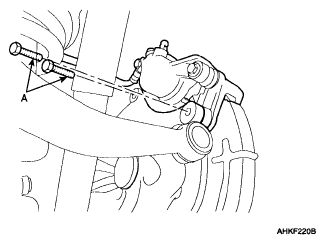

Fig 3: Identifying Brake Caliper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the wheel and the tire (A) to the rear hub (B).
Tightening torque Nm (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)

Fig 4: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear wheel and tire (A).
