Timing Belt: Removal

Engine removal is not required for this procedure.

1. Remove the engine cover (A).
   Fig 1: Identifying Engine Cover

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the RH front wheel.
3. Remove the 2 bolts (B) and RH side cover (A).
   Fig 2: Identifying RH Side Cover And Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
4. Temporarily loosen the water pump pulley bolts.
   Fig 3: Identifying Water Pump Pulley Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
5. Remove the alternator drive belt (A). (Refer to CHARGING SYSTEM )
   Fig 4: Identifying Drive Belts

   Courtesy of KIA MOTORS AMERICA, INC.
6. Remove the air conditioner compressor drive belt (B). (Refer to AIR CONDITIONING SYSTEM )
7. Remove the power steering pump drive belt (C). (Refer to MECHANICAL POWER STEERING SYSTEM )
8. Remove the 4 bolts and water pump pulley.
9. Remove the 4 bolts (B) and timing belt upper cover (A).
   Fig 5: Identifying Timing Belt Upper Cover And Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
10. Turn the crankshaft pulley, and align its groove with timing mark "T" of the timing belt cover. Check that the timing mark of camshaft sprocket is aligned with the timing mark of cylinder head cover. (No.1 cylinder compression TDC position)
    Fig 6: Identifying Timing Mark "T" Of Timing Belt Cover

    Courtesy of KIA MOTORS AMERICA, INC.
    Fig 7: Identifying Timing Mark Of Camshaft Sprocket

    Courtesy of KIA MOTORS AMERICA, INC.
11. Remove the crankshaft pulley bolt and crankshaft pulley (A).
    Fig 8: Identifying Crankshaft Pulley

    Courtesy of KIA MOTORS AMERICA, INC.
12. Remove the crankshaft flange (A).
    Fig 9: Identifying Crankshaft Flange

    Courtesy of KIA MOTORS AMERICA, INC.
13. Remove the 4 bolts (B) and timing belt lower cover (A).
    Fig 10: Identifying Timing Belt Lower Cover And Bolts

    Courtesy of KIA MOTORS AMERICA, INC.
14. Remove the timing belt tensioner (A) and timing belt.
    Fig 11: Identifying Timing Belt Tensioner

    Courtesy of KIA MOTORS AMERICA, INC.

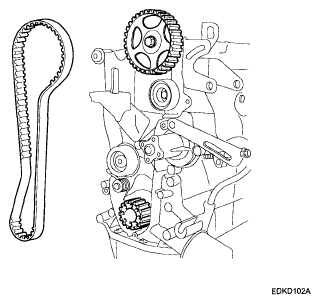

    Fig 12: Identifying Timing Belt

    Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: If the timing belt reused, make an arrow indicating the turning direction to make sure that the belt is reinstalled in the same direction as before.
15. Remove the bolt (B) and timing belt idler (A).
    Fig 13: Identifying Timing Belt Idler And Bolt

    Courtesy of KIA MOTORS AMERICA, INC.
16. Remove the crankshaft sprocket (A).
    Fig 14: Identifying Crankshaft Sprocket

    Courtesy of KIA MOTORS AMERICA, INC.
17. Remove the cylinder head cover.

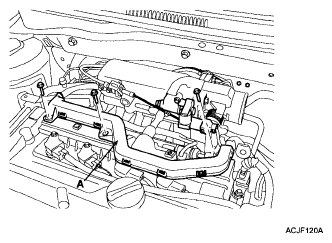

    1. Remove the wire harness bracket (A).
       Fig 15: Identifying Wire Harness Bracket

       Courtesy of KIA MOTORS AMERICA, INC.

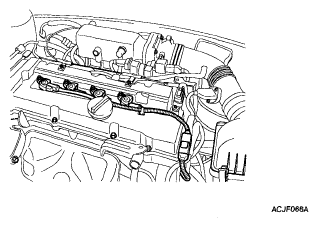

    2. Remove the ignition coil.
       • 1.6 CVVT
         Fig 16: Identifying Ignition Coil

         Courtesy of KIA MOTORS AMERICA, INC.
    3. Remove the PCV (Positive Crankcase Ventilation) hose (A) and the breather hose (B) from the cylinder head cover.
       Fig 17: Identifying PCV Hose And Breather Hose

       Courtesy of KIA MOTORS AMERICA, INC.
    4. Remove the engine cover bracket (A).
       Fig 18: Identifying Engine Cover Bracket

       Courtesy of KIA MOTORS AMERICA, INC.
    5. Loosen the cylinder head cover bolts (B) and then remove the cover (A) and gasket.
       • 1.6 CVVT
         Fig 19: Identifying Loosening Sequence Of Cylinder Head Cover Bolts

         Courtesy of KIA MOTORS AMERICA, INC.
18. Remove the camshaft sprocket.
    1. Hold the portion (A) of the camshaft with a hexagonal wrench, and remove the bolt (C) with a wrench (B) and remove the camshaft sprocket.
       Fig 20: Identifying Camshaft Portion

       Courtesy of KIA MOTORS AMERICA, INC.
       CAUTION: Be careful not to damage the cylinder head and valve lifter with the wrench.
