Manual Transaxle: Components

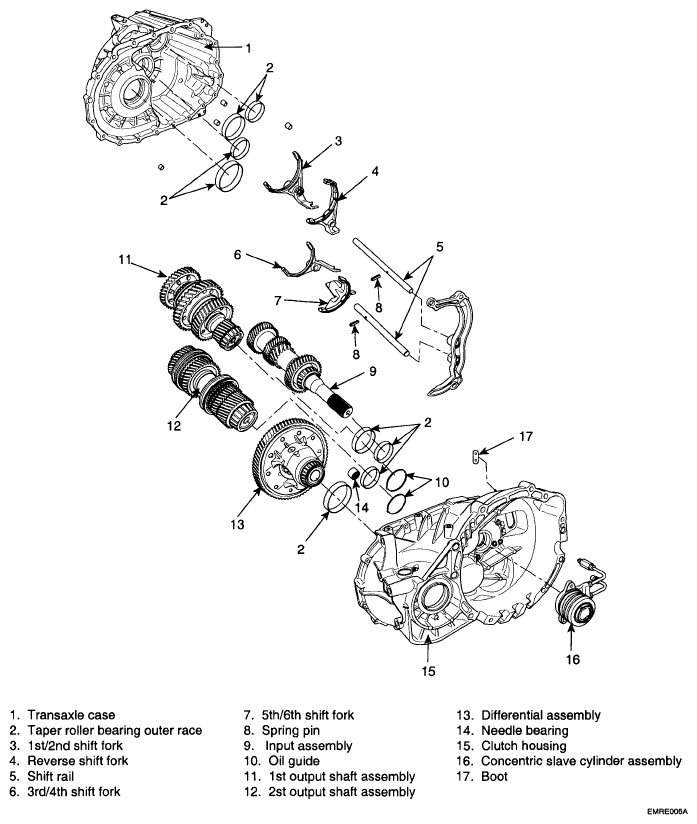

Fig 1: Exploded View Of Manual Transaxle Components

G04805009

Courtesy of KIA MOTORS AMERICA, INC.
