Manual Transaxle Shift Control System: Installation

Install the cable assembly (A) placing the select and shift lever in neutral position. (Refer to TRANSAXLE INSTALLATION )

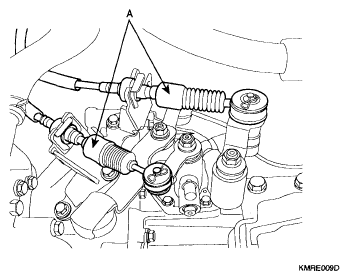

Fig 1: Identifying Shift Cable Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install the retainer (A) and nuts (B).

Fig 2: Identifying Retainer And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lever assembly (A).
TORQUE: 9-14 N.m (90-140 kgf.cm, 6-9.5 lb.ft)

Fig 3: Identifying Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install the clip (A) connecting the shift cable and the shift lever.

Fig 4: Identifying Clip From Shift Cable Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Move the slide clip (B) of guide member (A) in the direction as shown in the illustration.
NOTE: Adjust the slide clip fit into the select lever moving the slide clip in the direction (C).

Fig 5: Moving Slide Clip
Courtesy of KIA MOTORS AMERICA, INC.
Install the guide member (A) of the select cable (B).

Fig 6: Identifying Guide Member Of Select Cable
Courtesy of KIA MOTORS AMERICA, INC.
Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).
NOTE: Insert the slide clip in the direction as shown in the illustration.
* When Inserting the slide clip, Transmission TGS Lever must be in neutral position.

Fig 7: Identifying Slide Clip Into Select Lever Pin
Courtesy of KIA MOTORS AMERICA, INC.
Install the center console (A).

Fig 8: Identifying Center Console
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift boot (A).

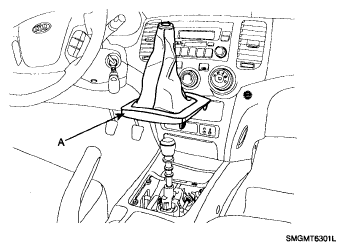

Fig 9: Identifying Shift Boot
Courtesy of KIA MOTORS AMERICA, INC.
