Ignition Switch: Inspection

Fig 1: Identifying Ignition Switch Connector And Key Warning Switch Connector
G04806710Courtesy of KIA MOTORS AMERICA, INC.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

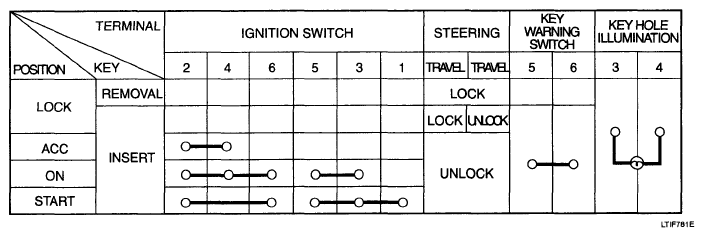

    Fig 2: Connector Terminal Continuity Specification Chart
    G04806711Courtesy of KIA MOTORS AMERICA, INC.
