Optima LX, 2.4 3, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Abs (Anti-Lock Brake System)
>>
Abs Circuit Diagram
>>
Notes
Abs Circuit Diagram: Notes

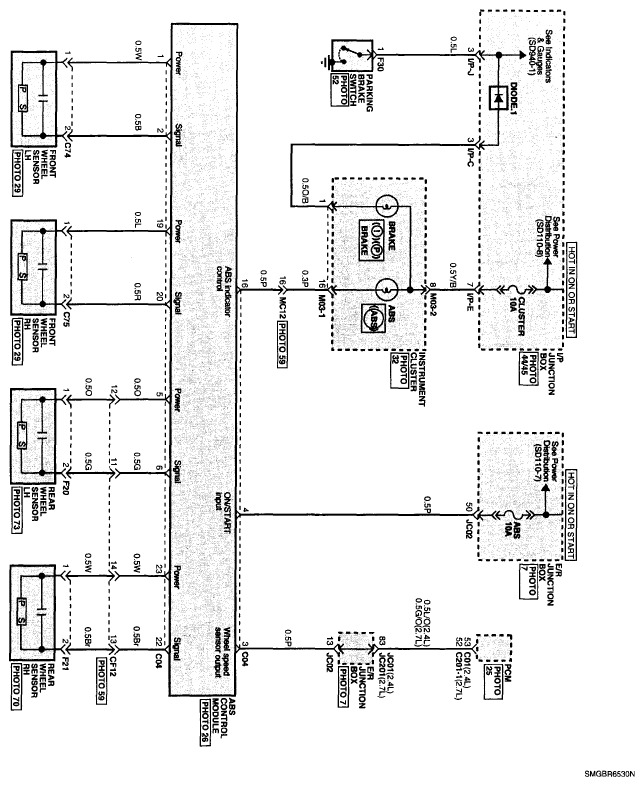

Fig 1: ABS Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

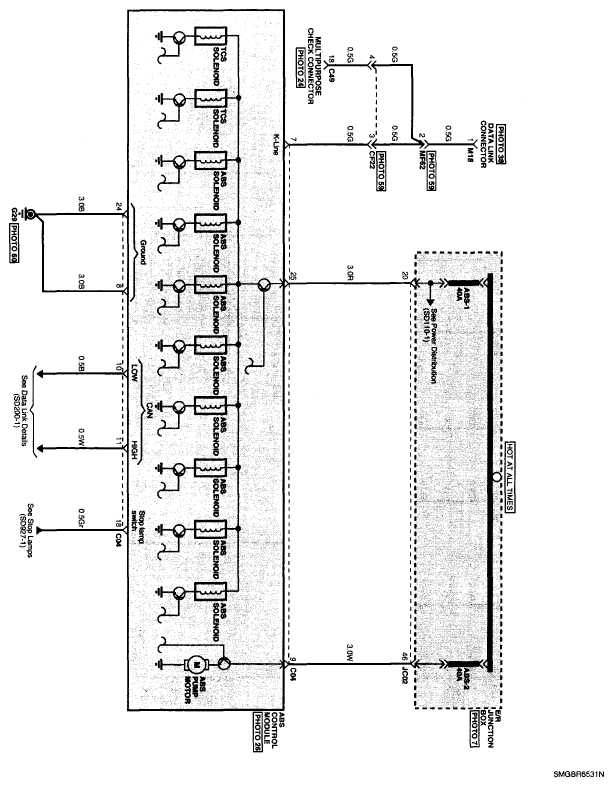

Fig 2: ABS Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
