Seat Back Frame Replacement

Remove the following items.
- RECLINER COVER ( ).
- SEAT BACK PANEL ( ).
- HEADREST GUIDE ( ).
- SEAT BACK COVER ( ).
Remove the pad (A) from frame (B).
NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precautions and service procedure relevant to air bag. (See )

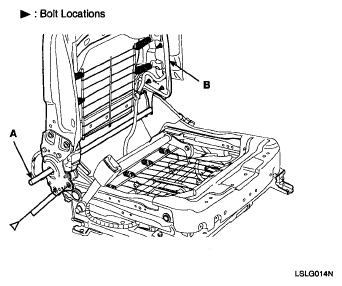

  Fig 1: Identifying Pad From Frame
  Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
