Seat Assembly Replacement

Remove the seat assembly mounting cover (A).
After loosening the seat assembly mounting bolts and nuts, remove the seat assembly (B).

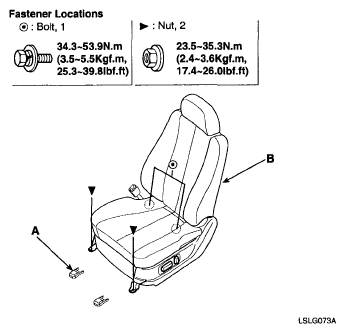

Fig 1: Identifying Seat Assembly Mounting Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A), and remove the seat assembly.

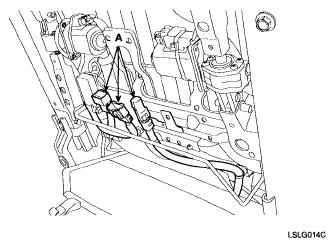

Fig 2: Identifying Connector And Seat Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.

CAUTION: SEAT MOUNTING BOLT INSTALLATION PROCEDURE

Set the into the most rearward position.
Check then each slide is locked, and then Tighten the front mounting bolt temporarily.

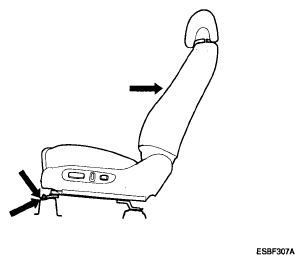

Fig 3: Locating Seat Mounting
Courtesy of KIA MOTORS AMERICA, INC.
Set the seat into most forward position.
Check that each slide is locked, and then Tighten the rear mounting bolt completely.

Fig 4: Locating Seat Mounting
Courtesy of KIA MOTORS AMERICA, INC.
Set the seat into the most rearward position. Check the front mounting bolt completely.

Fig 5: Locating Front Seat Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Check that the seat operates to and fro smoothy and the locking portion locks properly.

Fig 6: Locating Locking Portion Locks
Courtesy of KIA MOTORS AMERICA, INC.
