Power Seat Switch: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

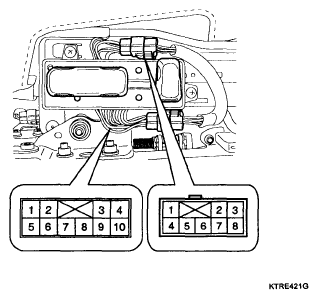

Fig 1: Identifying Power Seat Switch Connector Terminal

Courtesy of KIA MOTORS AMERICA, INC.

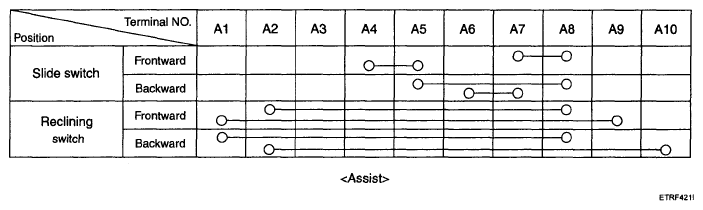

Fig 2: Power Seat Switch Connector Terminal Chart

Courtesy of KIA MOTORS AMERICA, INC.

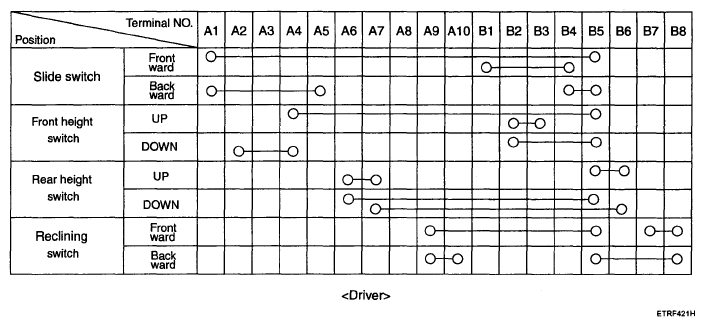

Fig 3: Power Seat Switch Connector Terminal Chart

Courtesy of KIA MOTORS AMERICA, INC.
