Front Floor Footrest: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT FLOOR FOOTREST
    1. Install the 2 clips on the front floor footrest.

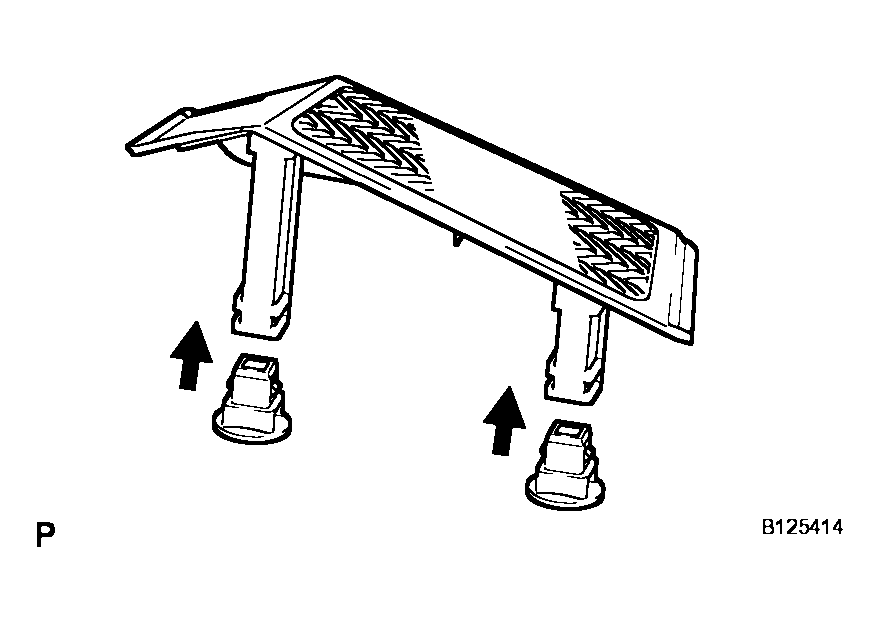

      Fig 1: Installing Clips On Front Floor Footrest
      G04051636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front floor footrest onto the 2 studs that protrude from the vehicle floor.
  2. INSTALL FRONT DOOR OPENING TRIM COVER (See Step 86 in  INSTALLATION   )
  3. INSTALL FRONT DOOR SCUFF PLATE (See Step 88 in  INSTALLATION   )
    Fig 2: Installing Front Door Scuff Plate
    G04051637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
