Stereo Component Amplifier: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LUGGAGE COMPARTMENT TRIM COVER
REMOVE DECK SIDE TRIM BOX RH
REMOVE DECK SIDE TRIM BOX LH
REMOVE ROPE HOOK ASSEMBLY
1. Remove the 3 bolts and 3 rope hook assemblies.
REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (See REMOVAL )
REMOVE ROOM LIGHT ASSEMBLY (See REMOVAL )
REMOVE ROPE HOOK (See REMOVAL )
REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (See REMOVAL )

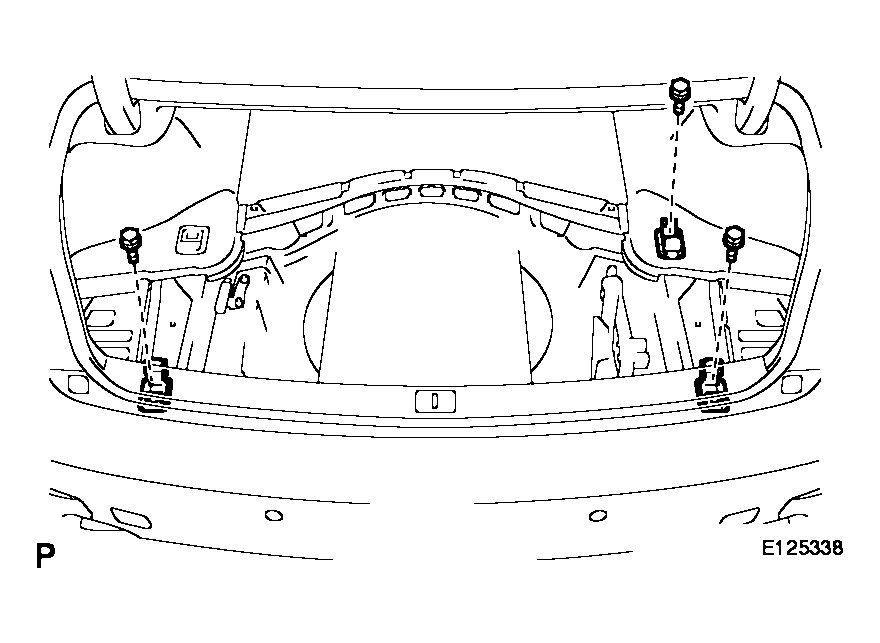

Fig 1: Identifying Bolts And Rope Hook Assemblies
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT TRIM HOOK
1. Remove the screw and luggage compartment trim hook.

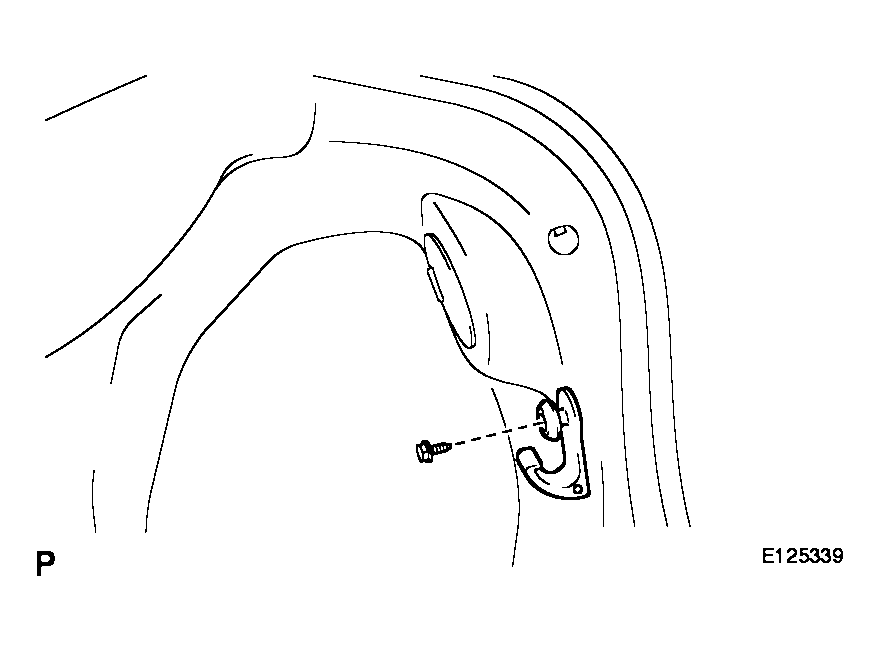

Fig 2: Identifying Screw And Luggage Compartment Trim Hook
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER
1. Using a clip remover, remove the 3 clips and side luggage compartment trim cover.
REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
1. Disconnect the connectors.

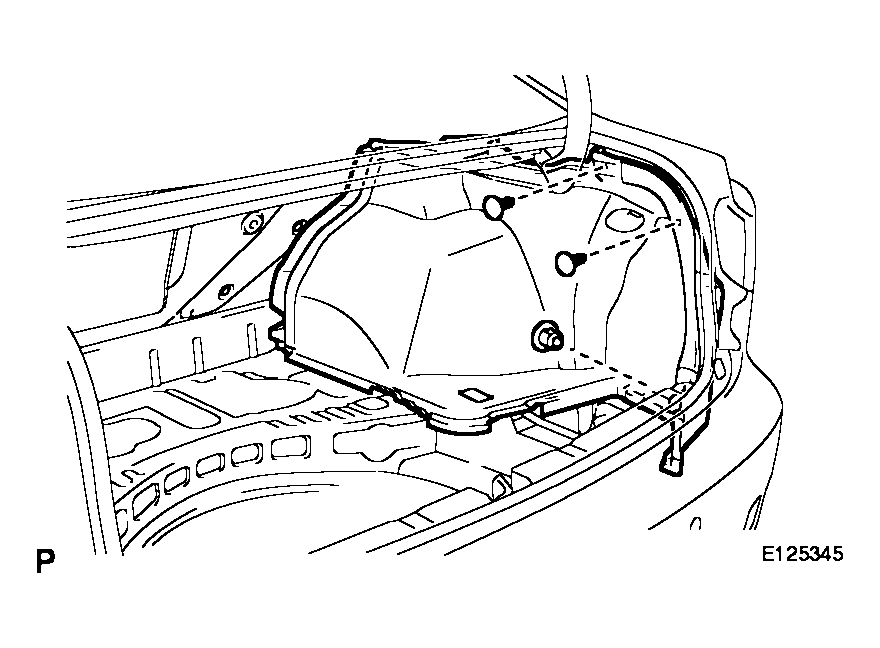

  Fig 3: Identifying Clips And Side Luggage Compartment Trim Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and the stereo component amplifier assembly with bracket.

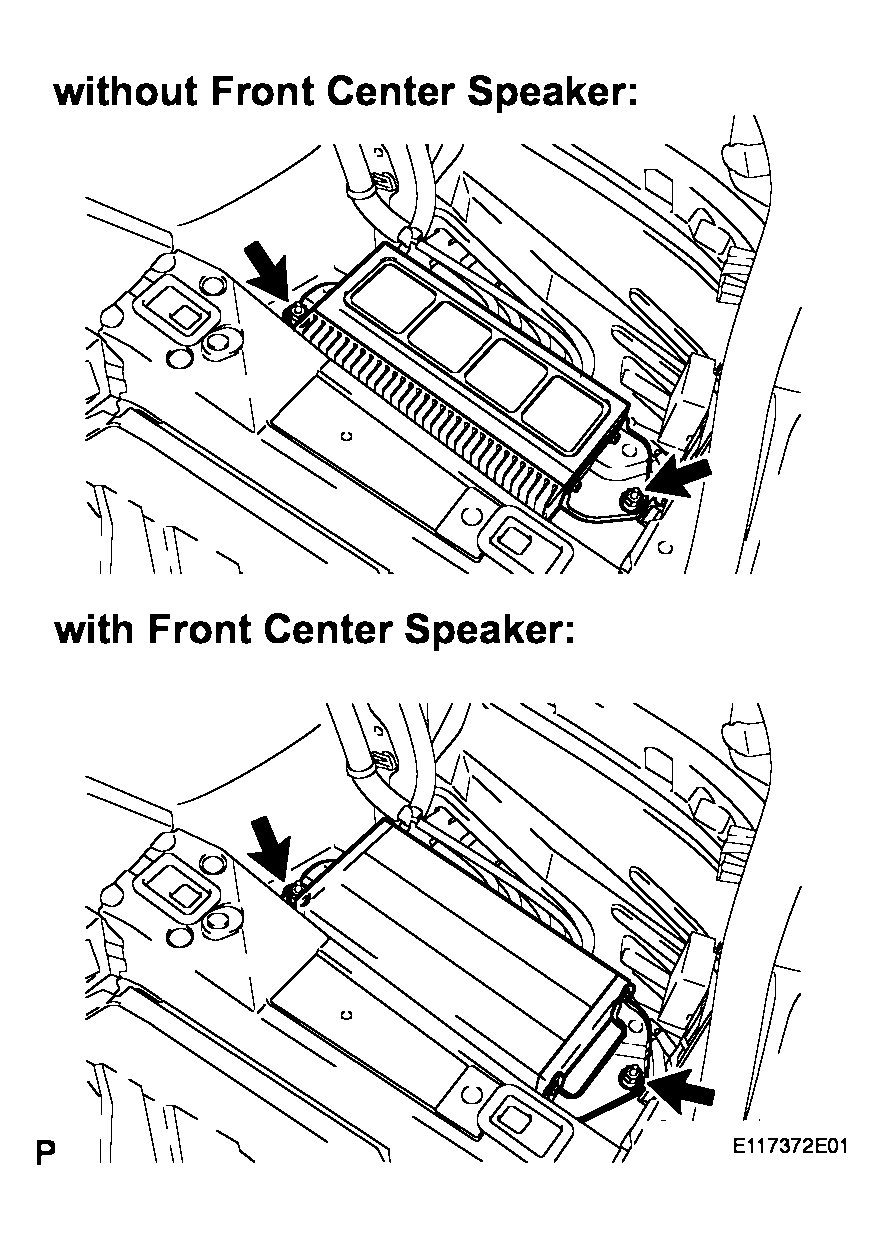

  Fig 4: Identifying Nuts And Stereo Component Amplifier Assembly With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 clips and remove the amplifier cover.

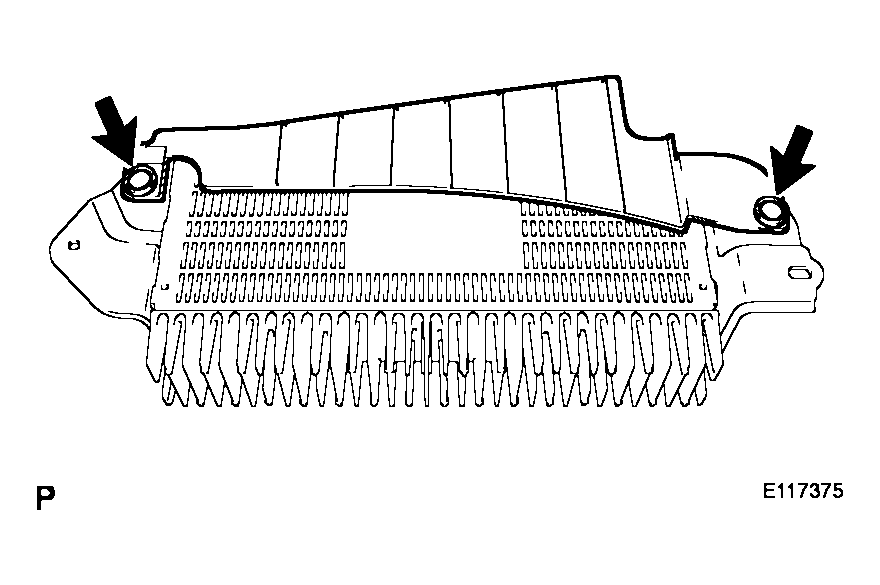

Fig 5: Identifying Amplifier Cover And Disengaging Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 AMPLIFIER BRACKET
1. Remove the 2 bolts and the No. 1 amplifier bracket.

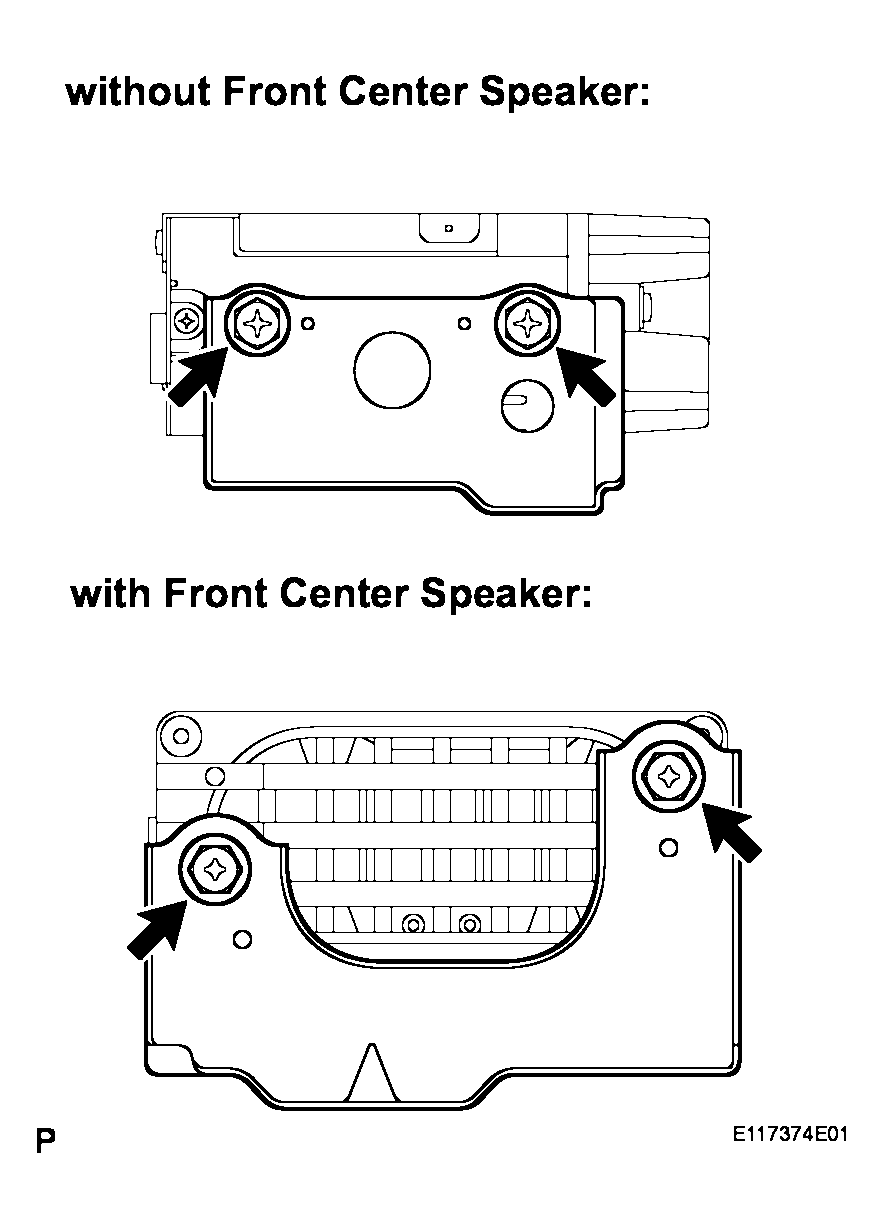

Fig 6: Identifying Bolts And No. 1 Amplifier Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 AMPLIFIER BRACKET
1. Remove the 2 bolts and the No. 2 amplifier bracket.
REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

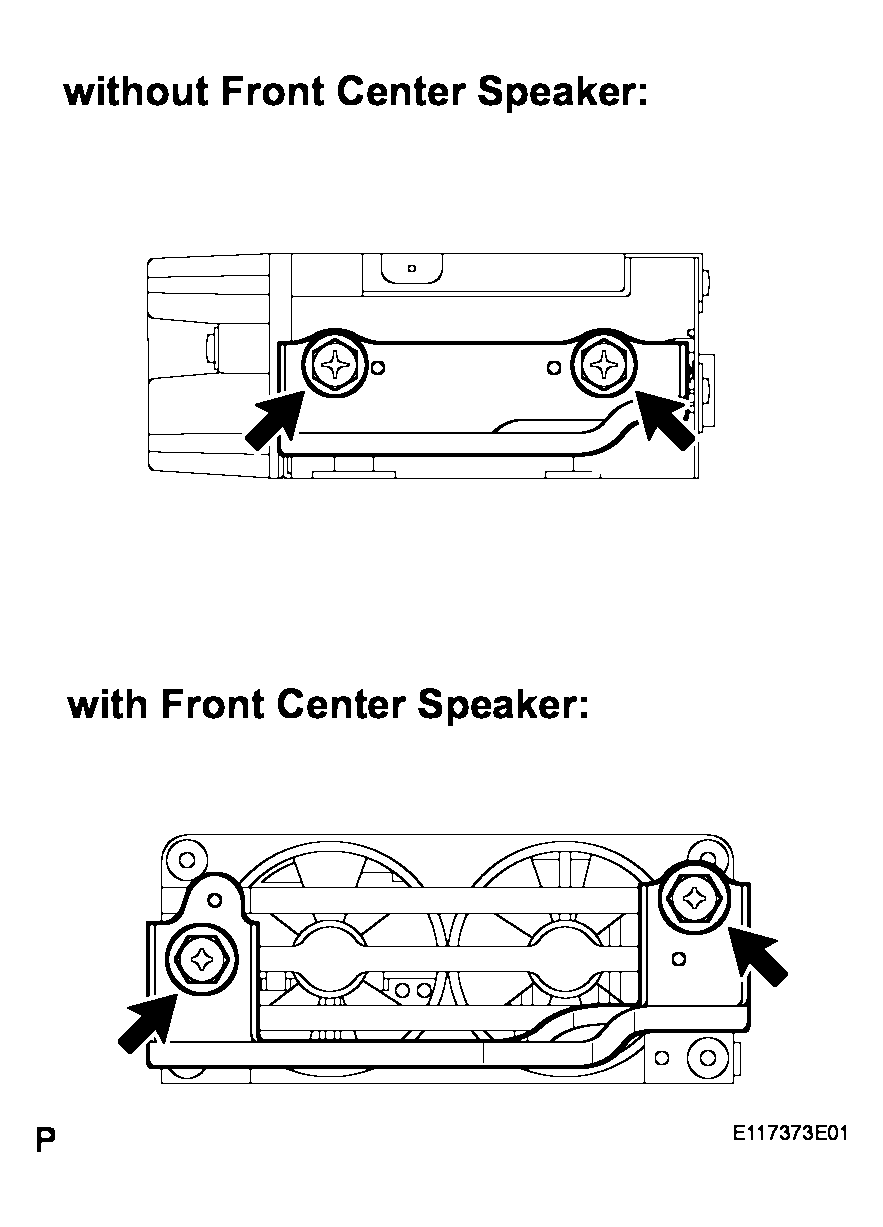

Fig 7: Identifying Bolts And No. 2 Amplifier Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
