Steering Pad Switch: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See AIRBAG SYSTEM ).
  2. REMOVE LOWER NO. 3 STEERING WHEEL COVER (See  REMOVAL  )
  3. REMOVE LOWER NO. 2 STEERING WHEEL COVER (See  REMOVAL  )
  4. REMOVE STEERING PAD (See  REMOVAL  )
  5. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the cruise switch connector.
    2. Disengage the connector clamp.
    3. Disconnect the pad switch connector.

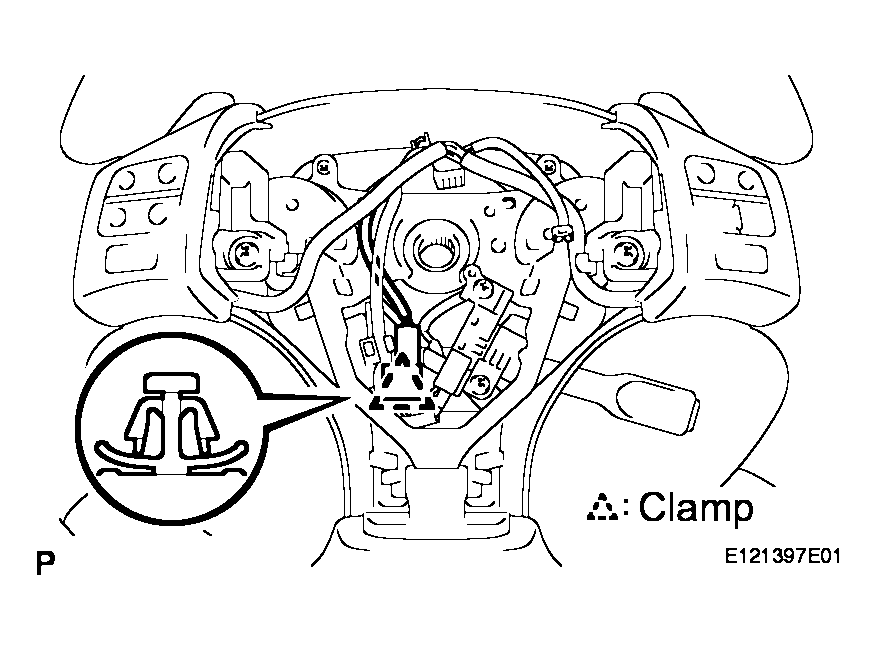

      Fig 1: Identifying Connector Clamp
      G04050275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the screw.
    5. Disengage the 2 claws and remove the steering pad switch.

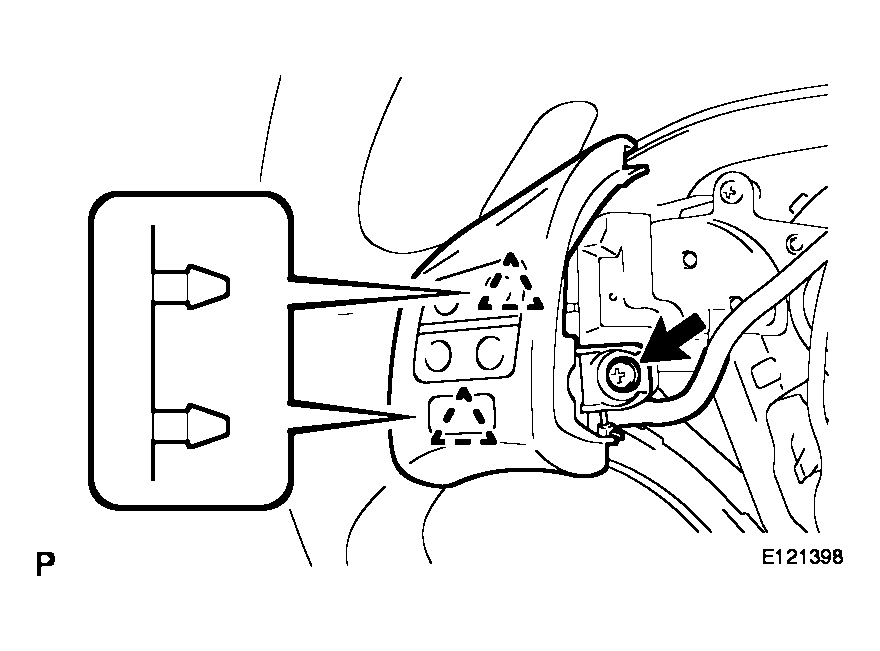

      Fig 2: Identifying Screw
      G04050276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the screw.
    7. Disengage the 2 claws and remove the steering pad switch.

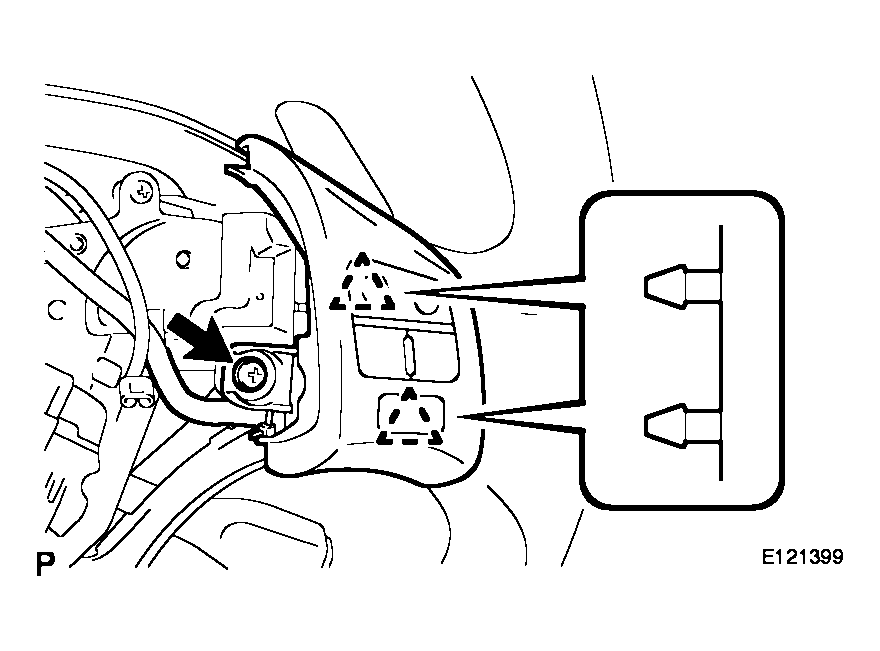

    Fig 3: Identifying Screw
    G04050277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
