Rear Center Speaker: Components

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

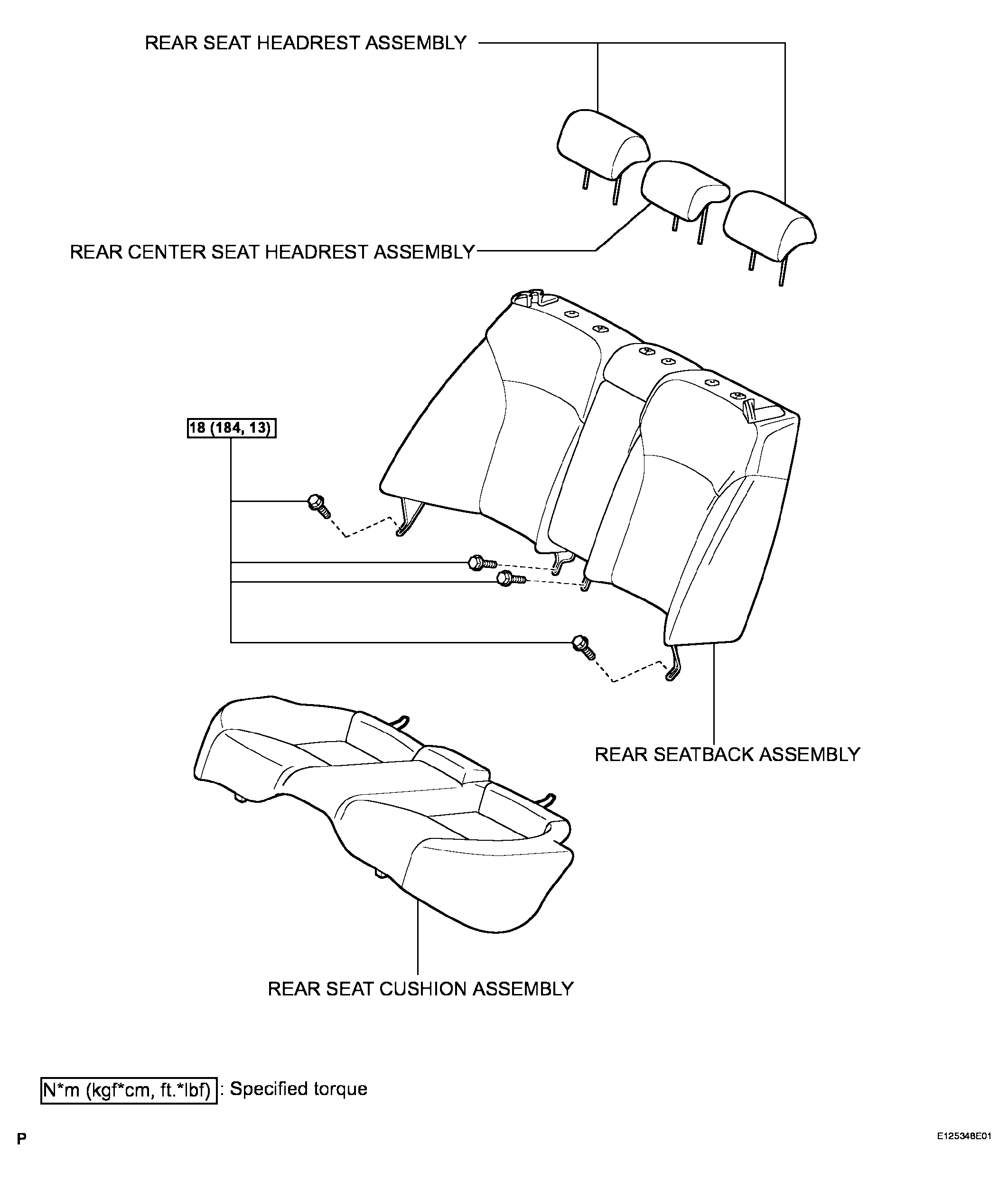

Fig 1: Rear Center Speaker Replacement Components With Torque Specifications (1 Of 2)
G04050236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

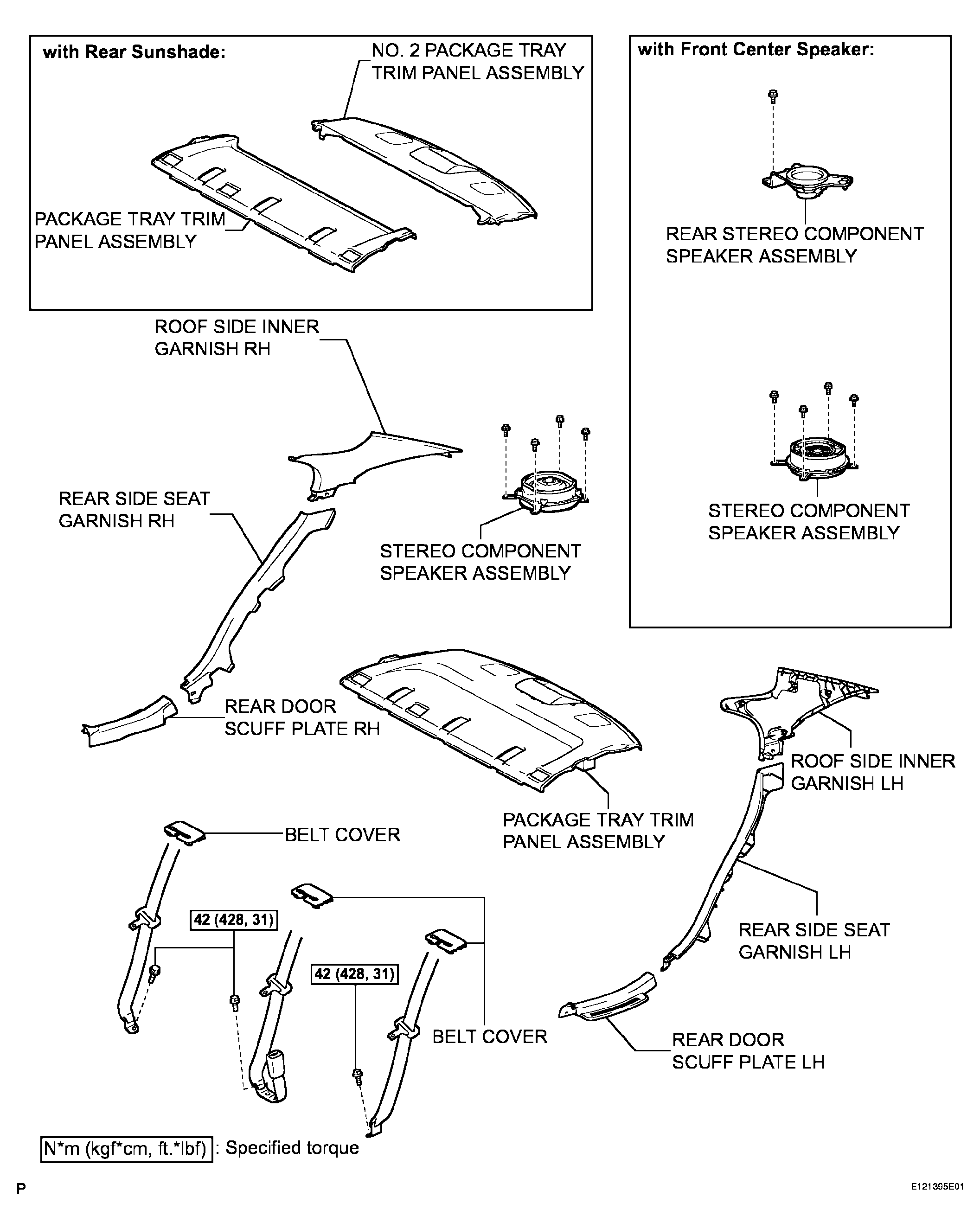

Fig 2: Rear Center Speaker Replacement Components With Torque Specifications (2 Of 2)
G04050237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
