Front Side Speaker: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG (See  DISASSEMBLY  )
  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See  DISASSEMBLY  )
  3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY (See  DISASSEMBLY  )
  4. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP (See  DISASSEMBLY  )
  5. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 3 bolts and front No. 1 speaker assembly.

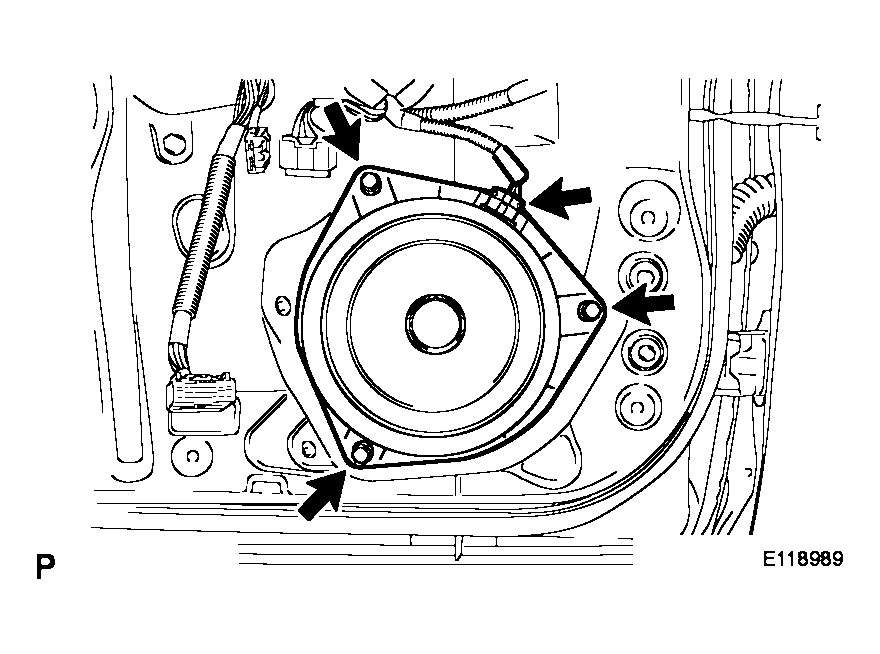

      Fig 1: Identifying Bolts And Front No. 1 Speaker Assembly
      G04050214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not touch the cone part of the speaker.
  6. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    1. Disengage the 2 clamps.
    2. Remove the 3 screws and front No. 2 speaker w/ cover.

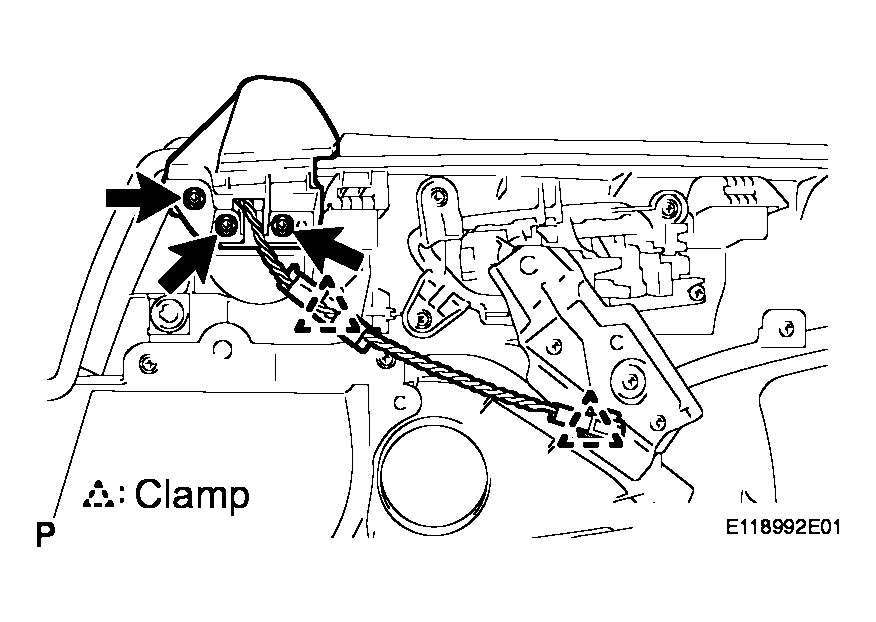

      Fig 2: Identifying Screws And Front No. 2 Speaker W/ Cover
      G04050215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 claws and remove the cover.

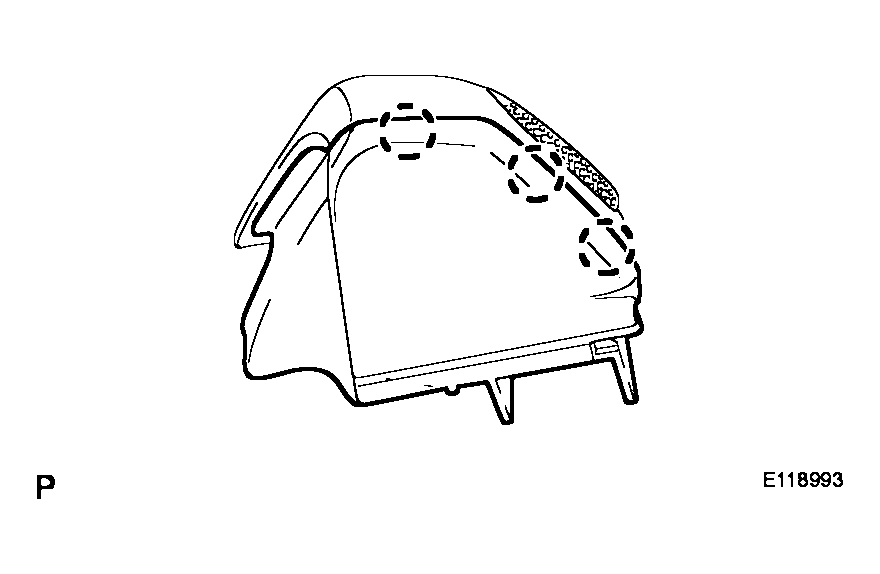

      Fig 3: Identifying Cover And Claws
      G04050216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the front No. 2 speaker assembly.
      NOTE: Do not touch the cone part of the speaker.

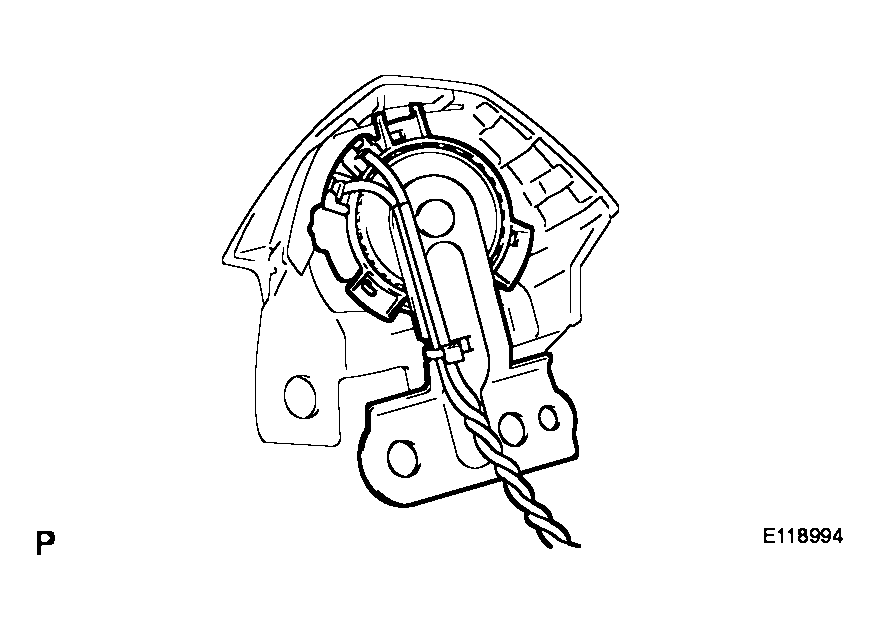

    Fig 4: Identifying Front No. 2 Speaker Assembly
    G04050217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 2 bolts and front No. 3 speaker assembly.
      NOTE: Do not touch the cone part of the speaker.

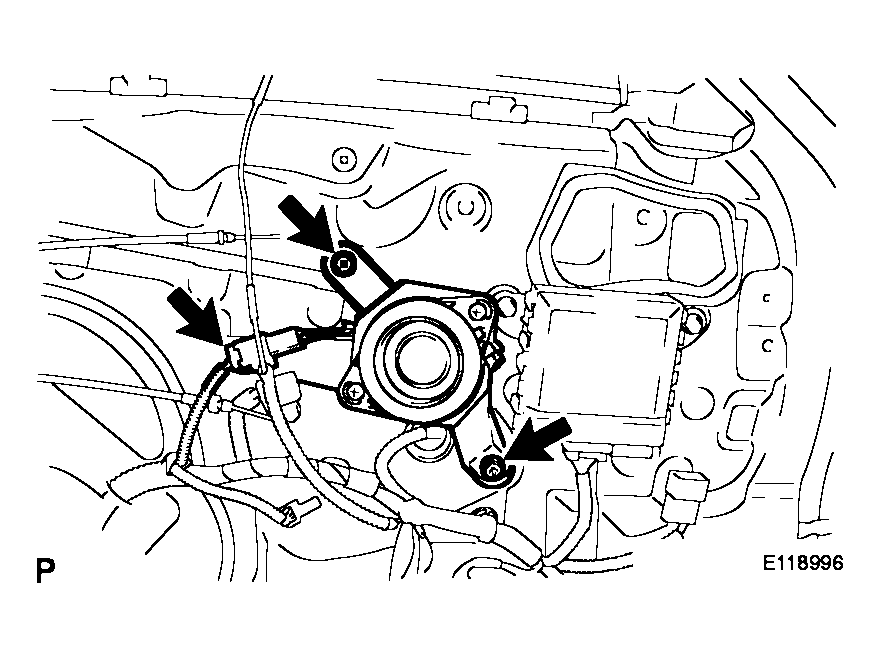

    Fig 5: Identifying Bolts And Front No. 3 Speaker Assembly
    G04050218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
