Amplifier Antenna: Installation
WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL AMPLIFIER ANTENNA ASSEMBLY

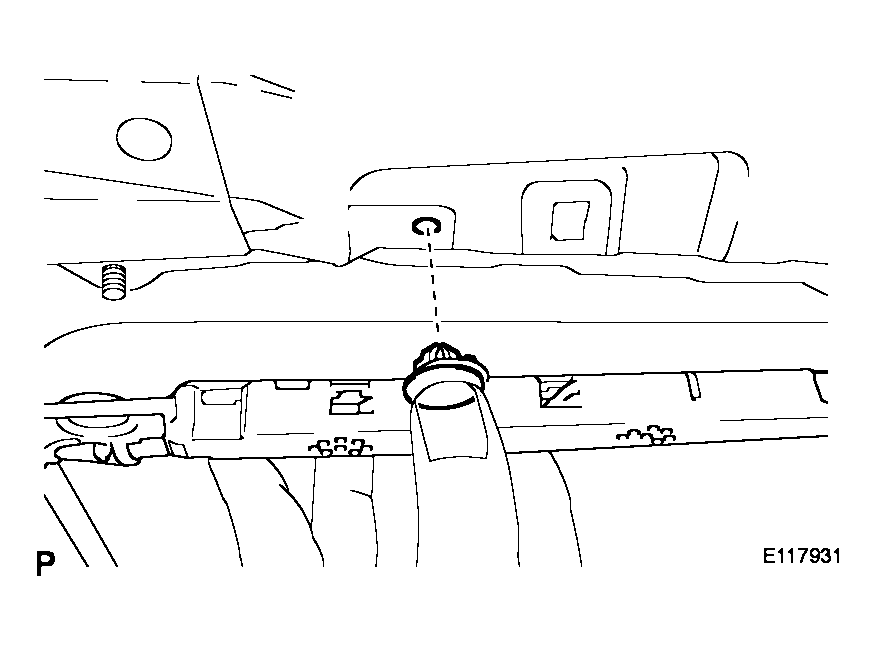

- Engage the clip as shown in the illustration to temporarily install the amplifier antenna assembly.
NOTE:
- Clean the antenna conductors on the rear window with white gasoline where the contact terminals will touch.
- When installing a new amplifier antenna assembly, do not remove the protective cover until immediately before installation.
- Do not touch the contact terminals.

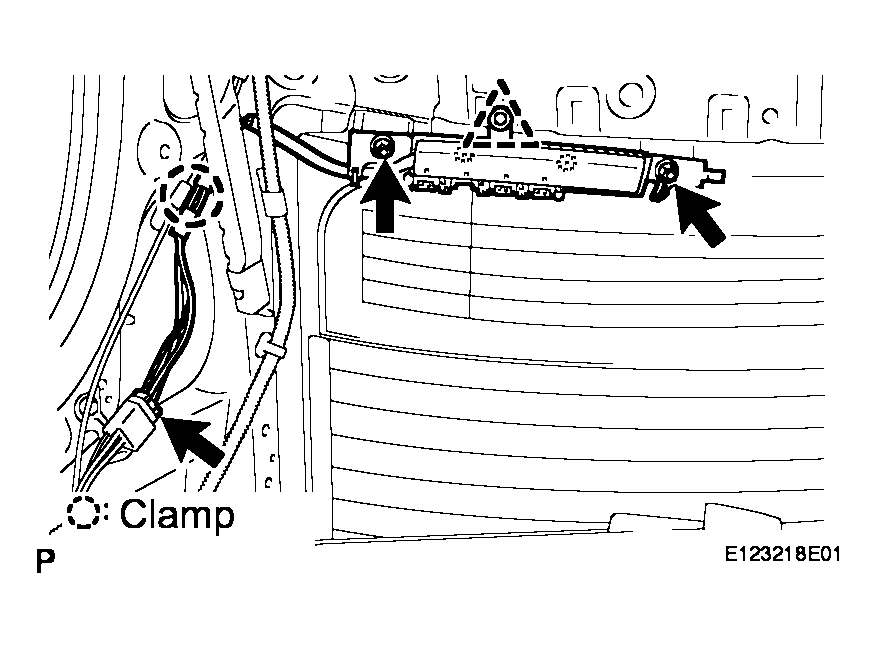

- Install the 2 nuts and amplifier antenna assembly.
Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)
- Connect the connector.
- Engage the clamp.
- Engage the clip as shown in the illustration to temporarily install the amplifier antenna assembly.
- INSTALL ROOF HEADLINING ASSEMBLY
(see INSTALLATION )
HINT:
Refer to the procedures from INSTALLATION .
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
- INSPECT SRS WARNING LIGHT
(see DIAGNOSIS SYSTEM )
