Room Temperature Sensor: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment. (See PRECAUTION )
  2. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See  REMOVAL  )
  3. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See  REMOVAL  )
  4. REMOVE FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  5. REMOVE SIDE INSTRUMENT PANEL LH (See  REMOVAL  )
  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  8. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  9. REMOVE ROOM TEMPERATURE SENSOR
    1. Disconnect the connector and air hose.
    2. Detach the claw and remove the sensor.

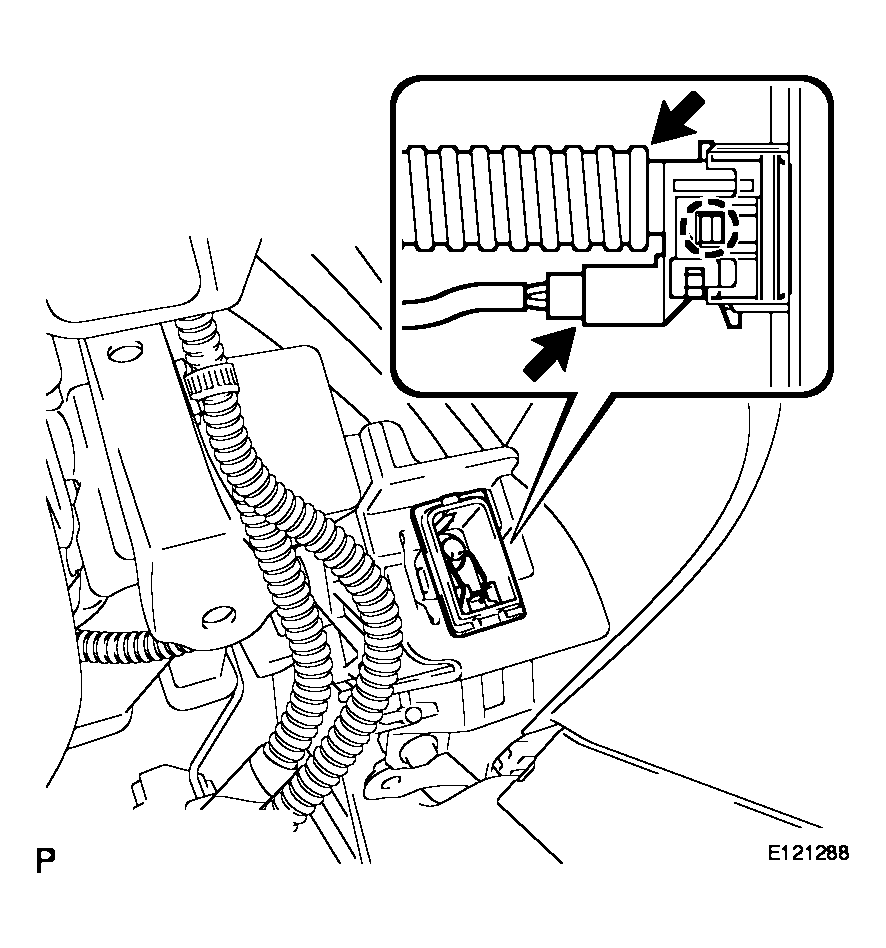

    Fig 1: Identifying Connector And Air Hose
    G04048510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
