Ambient Temperature Sensor: Removal
WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL
)
- REMOVE FRONT BUMPER ASSEMBLY (See REMOVAL
)

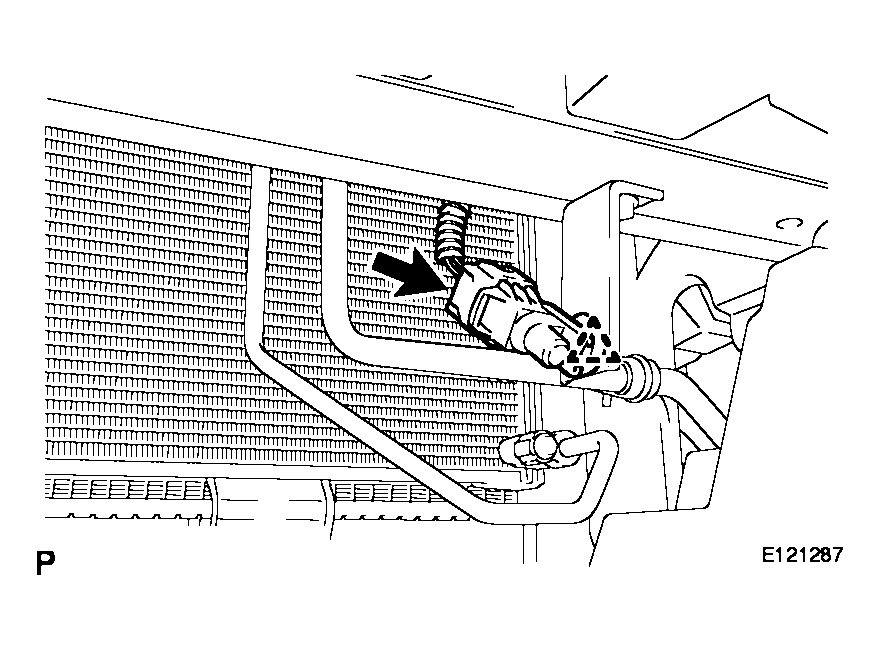

- REMOVE AMBIENT TEMPERATURE SENSOR
- Disconnect the connector and detach the clamp.
- Remove the ambient temperature sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
