Inspection Procedure

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FUSE (FR DOOR LH)
1. Remove the FR DOOR LH fuse from the cowl side J/B LH.
2. Measure the resistance of the fuse.
  Standard resistance:

  Below 1 Ω
NG: REPLACE FUSE

OK: Go to next step.

CHECK WIRE HARNESS (POWER WINDOW MASTER SWITCH - BATTERY AND BODY GROUND)

Disconnect the M7 switch connector.
Turn the engine switch on (IG).

Measure the voltage and resistance of the wire harness side connector.

Standard voltage

TESTER CONNECTION AND SPECIFIED CONDITION TABLE

Tester Connection	Condition	Specified Condition
BDR (M7-10) - Body ground	Always	10 to 14 V

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION TABLE

Tester Connection	Specified Connection
GND (M7-2) - Body ground	Below 1 ohms

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

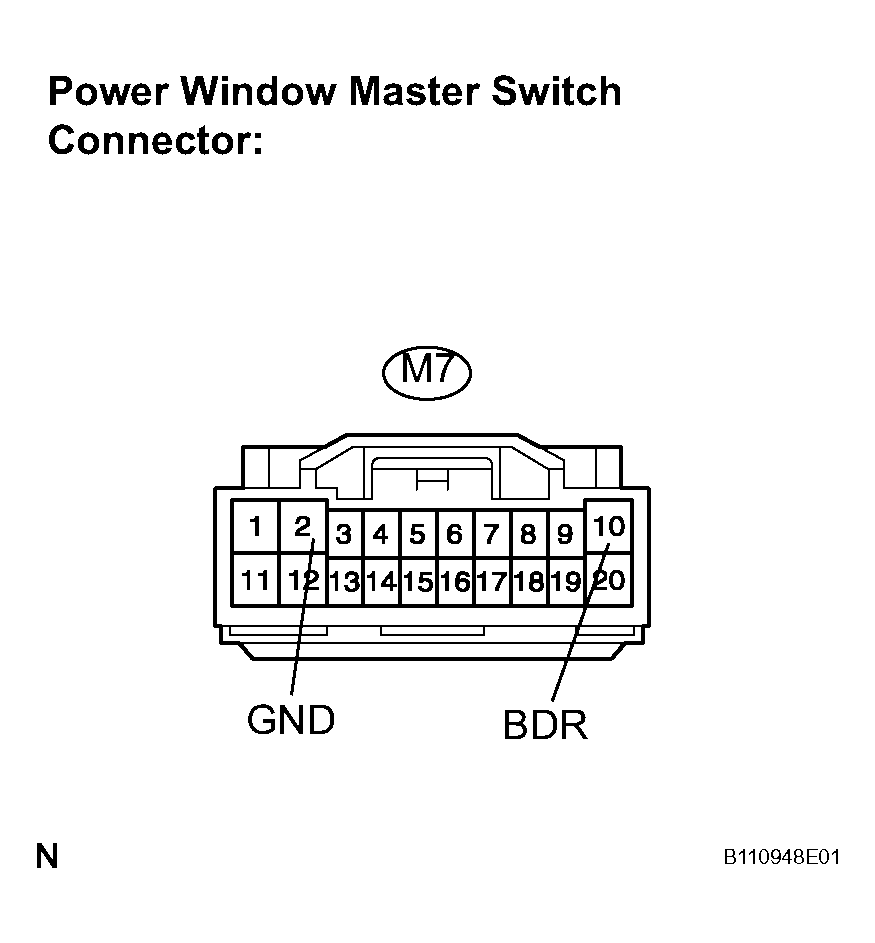

Fig 1: Identifying Power Window Master Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step.

CHECK RESISTANCE OF COMMUNICATION LINE

Disconnect the M7, Q3 and P33 ECU connectors.

Measure the resistance between the specified terminals on the wire harness side connectors.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION TABLE

Tester Connection	Specified Condition
MPX1 (M7-7) - MPX1 (Q3-15)	Below 1 ohms
MPX2 (M7-8) - MPX2 (P33-28)	Below 1 ohms

Result

RESULT DESCRIPTION TABLE

Result	Proceed to
Both are OK	A
One is OK	B
Both are NG	C

B: REPAIR OR REPLACE HARNESS OR CONNECTOR AND REPLACE POWER WINDOW MASTER SWITCH

C: REPAIR OR REPLACE HARNESS OR CONNECTOR

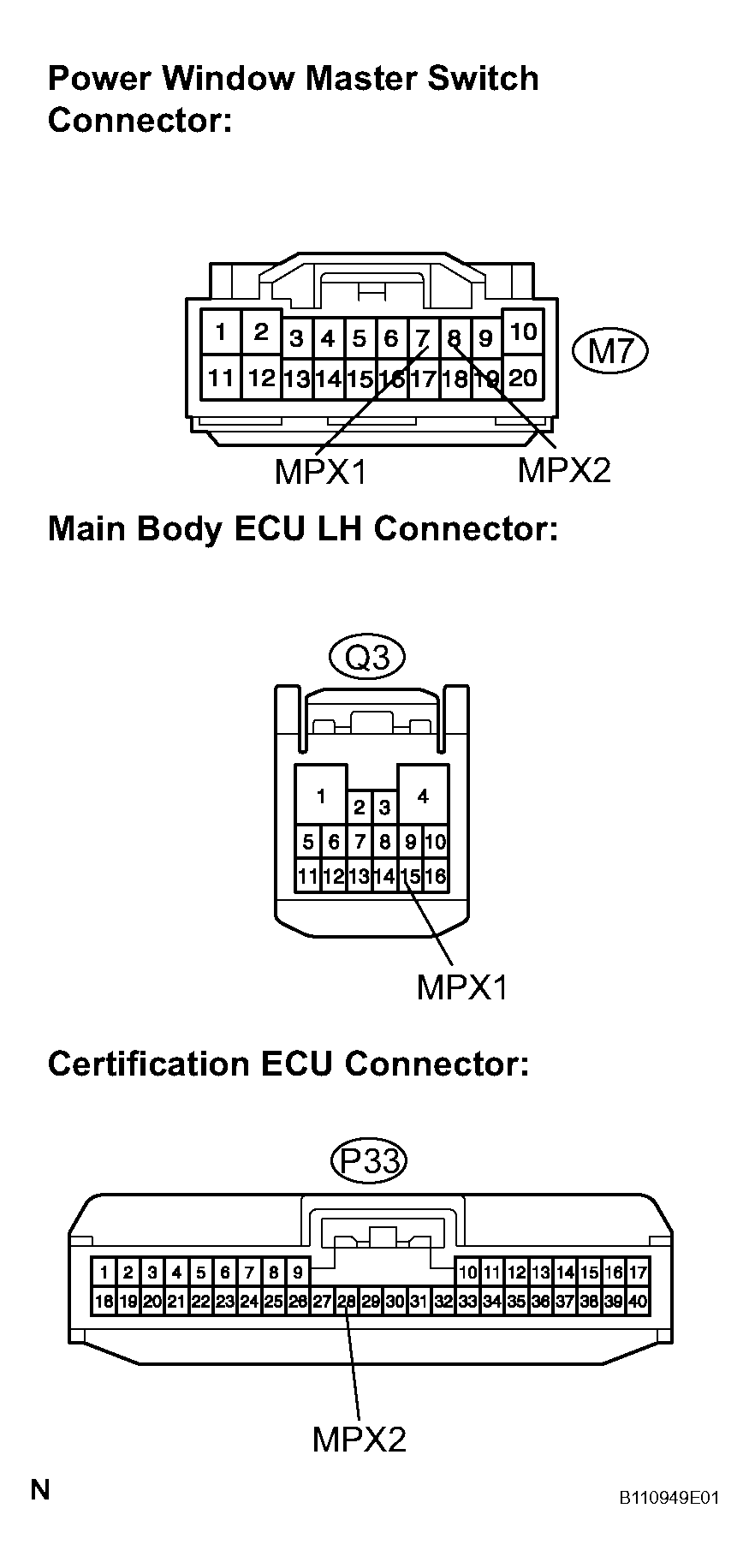

Fig 2: Identifying Power Window Master Switch Connector Terminals

A: REPLACE POWER WINDOW MASTER SWITCH
