On-Vehicle Inspection

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TURN SIGNAL FLASHER ASSEMBLY
    1. Disconnect the J30 connector.
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      SPECIFIED CONDITION AND TESTER CONNECTION

      Tester Connection Condition Specified Condition
      J30-1 (IG) - Body ground Engine switch off Below 1 V
      J30-1 (IG) - Body ground Engine switch on (IG) 10 to 14 V
      J30-4 (B) - Body ground Always 10 to 14 V
      J30-7 (E) - Body ground Always Below 1 V
    3. Reconnect the connector.
    4. Measure the voltage of the connector.

    Standard voltage

    SPECIFIED CONDITION AND TESTER CONNECTION

    Tester Connection Condition Specified Condition
    J30-2 (LR) - Body ground Hazard warning switch OFF Below 1 V
    J30-2 (LR) - Body ground Hazard warning switch ON 10 to 14 V (60 to 120 times per minute)
    J30-2 (LR) - Body ground Engine switch on (IG) and turn signal switch (right turn) OFF Below 1 V
    J30-2 (LR) - Body ground Engine switch on (IG) and turn signal switch (right turn) ON 10 to 14 V (60 to 120 times per minute)
    J30-3 (LL) - Body ground Hazard warning switch OFF Below 1 V
    J30-3 (LL) - Body ground Hazard warning switch ON 10 to 14 V (60 to 120 times per minute)
    J30-3 (LL) - Body ground Engine switch on (IG) and turn signal switch (left turn) OFF Below 1 V
    J30-3 (LL) - Body ground Engine switch on (IG) and turn signal switch (left turn) ON 10 to 14 V (60 to 120 times per minute)
    J30-5 (EL) - Body ground Engine switch on (IG) and turn signal switch (left turn) OFF 10 to 14 V
    J30-5 (EL) - Body ground Engine switch on (IG) and turn signal switch (left turn) ON Below 1 V
    J30-6 (ER) - Body ground Engine switch on (IG) and turn signal switch (right turn) OFF 10 to 14 V
    J30-6 (ER) - Body ground Engine switch on (IG) and turn signal switch (right turn) ON Below 1 V
    J30-8 (HAZ) - Body ground Hazard warning switch OFF 10 to 14 V
    J30-8 (HAZ) - Body ground Hazard warning switch ON Below 1 V

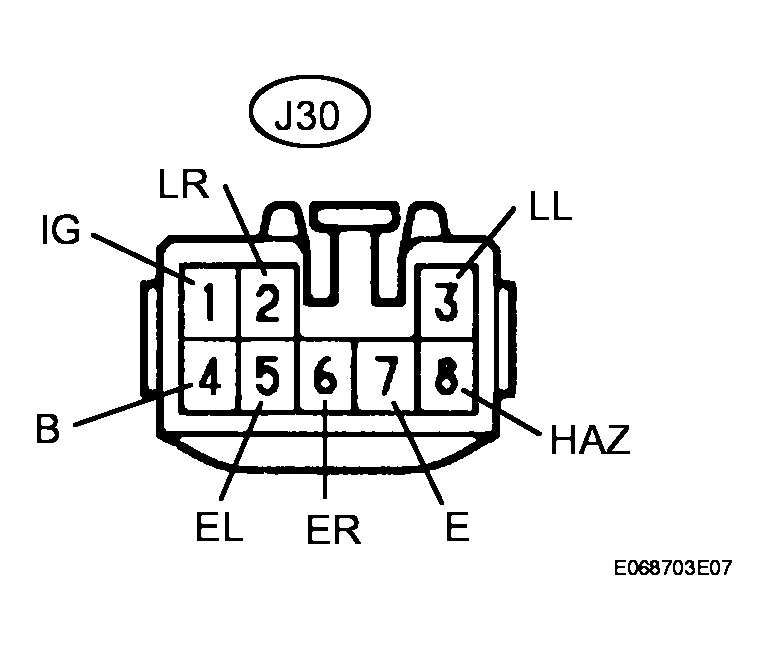

    Fig 1: Identifying J30 Connector
    G04049668Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    If the result is not as specified, replace the flasher assembly.
