Scuff Plate Light: Inspection

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SCUFF PLATE LIGHT

Disconnect the connector from the scuff plate light.

Measure the voltage of the connector.

Standard voltage

LH Side:

SPECIFIED CONDITION AND TESTER CONNECTION

Tester Connection	Condition	Specified Condition
Q8-2 (+) - Q8-1 (-)	Any door is opened	10 to 14 V
Q8-2 (+) - Q8-1 (-)	All doors are closed	Below 1 V

RH Side:

SPECIFIED CONDITION AND TESTER CONNECTION

Tester Connection	Condition	Specified Condition
P2-2 (+) - P2-1 (-)	Any door is opened	10 to 14 V
P2-2 (+) - P2-1 (-)	All doors are closed	Below 1 V

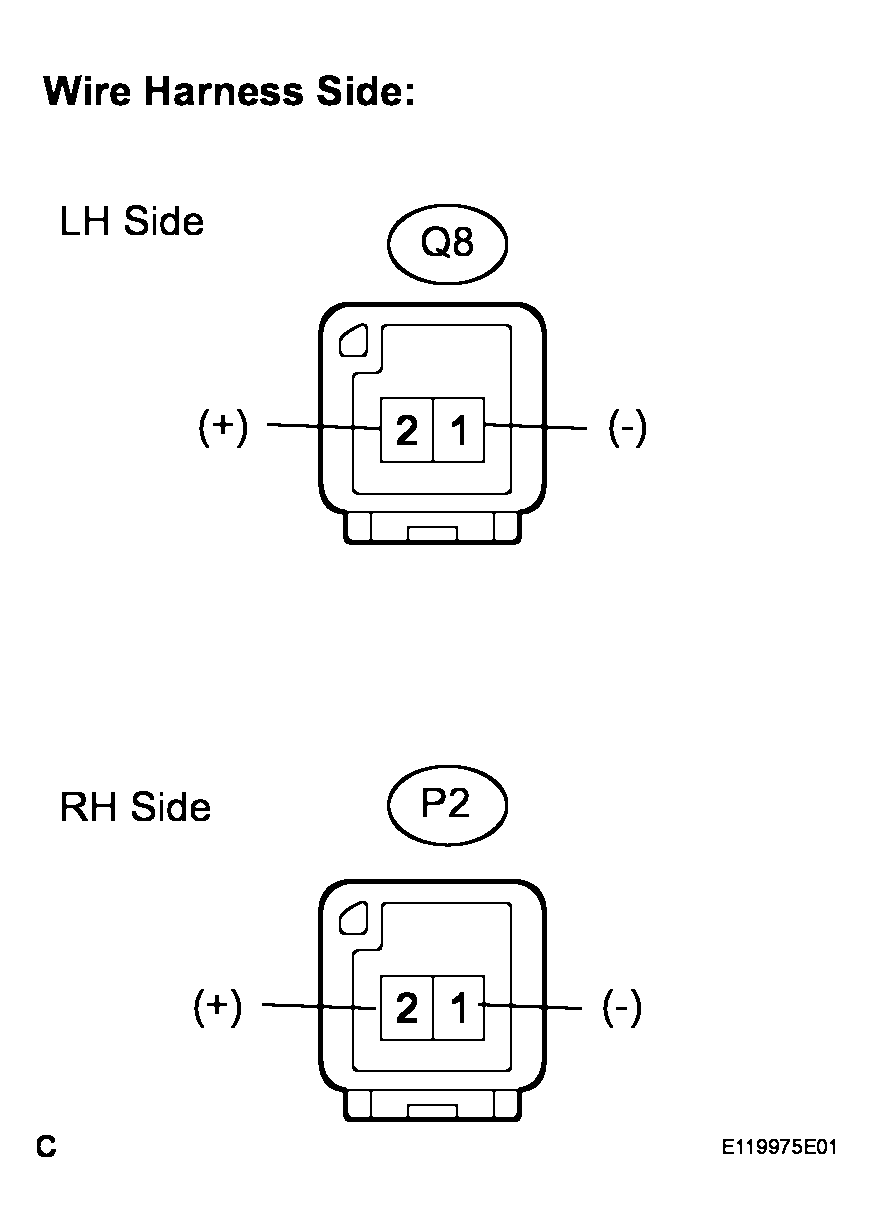

Fig 1: Identifying Connector From Scuff Plate Light

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

If the result is not as specified, repair or replace wire harness or connector.

Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
Check that the scuff plate light comes on.

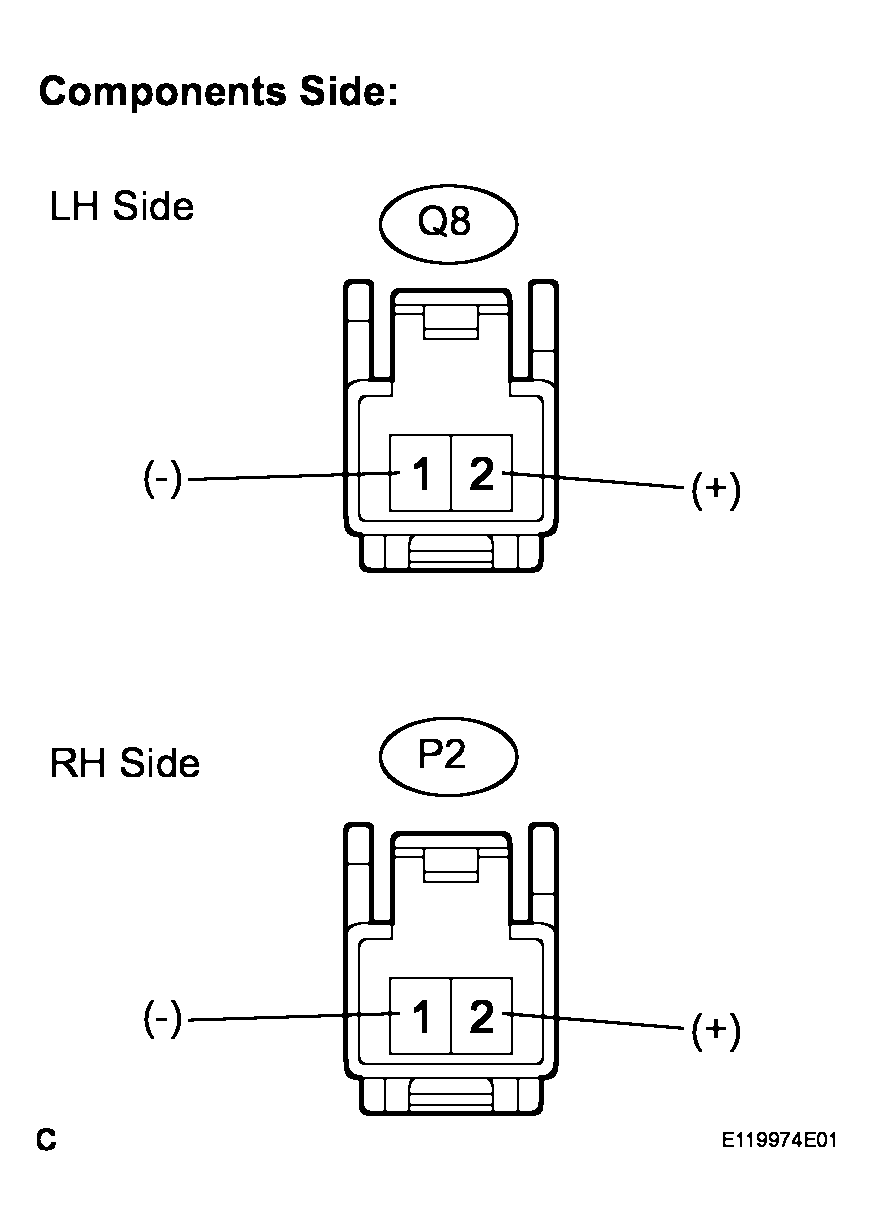

Fig 2: Connecting (+) Lead From Battery To Terminal 2 And (-) Lead To Terminal 1

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

OK:

Comes on

If the result is not as specified, replace the scuff plate.
