Parts Location

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

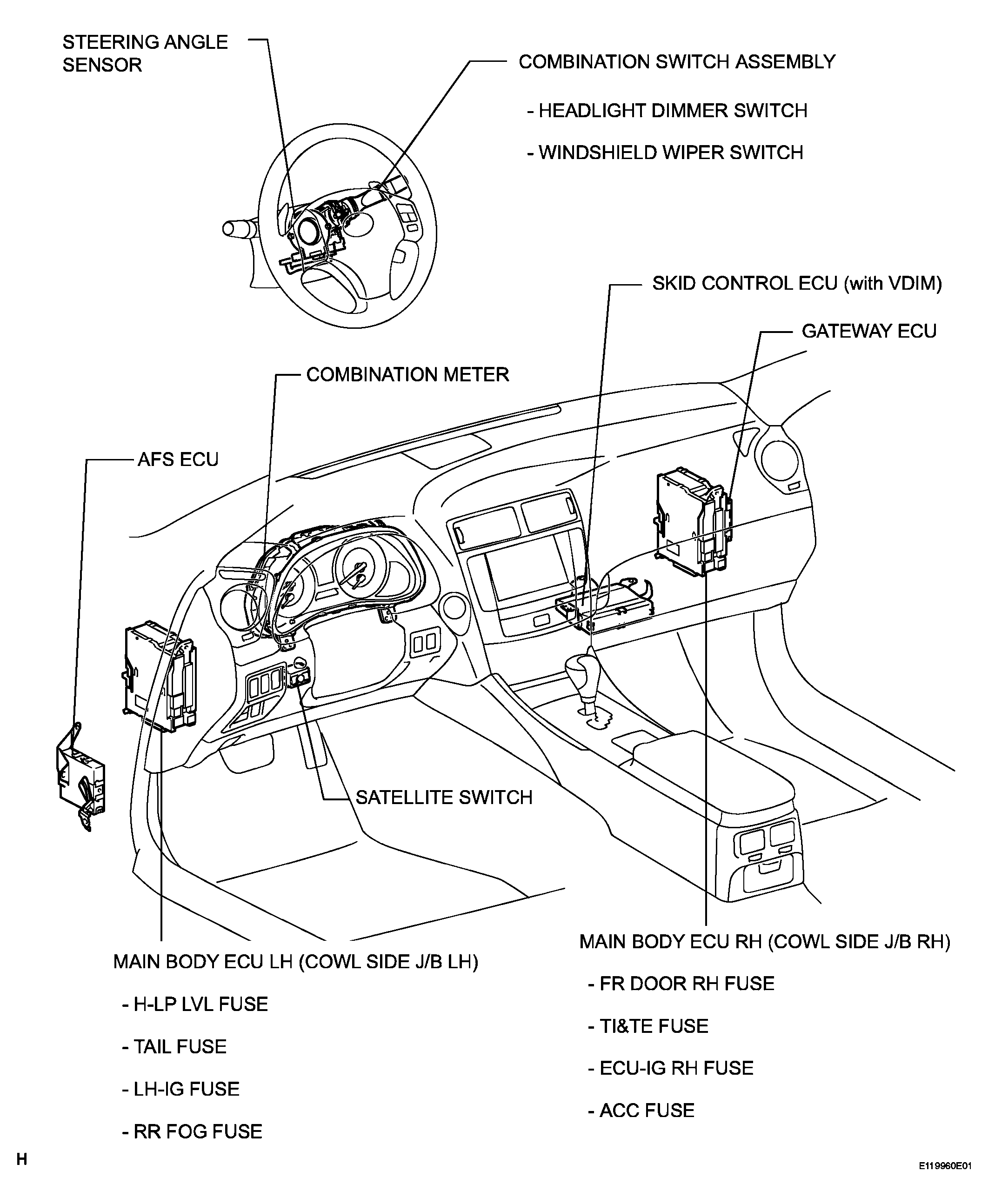

Fig 1: Identifying Lighting System Parts Location (1 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

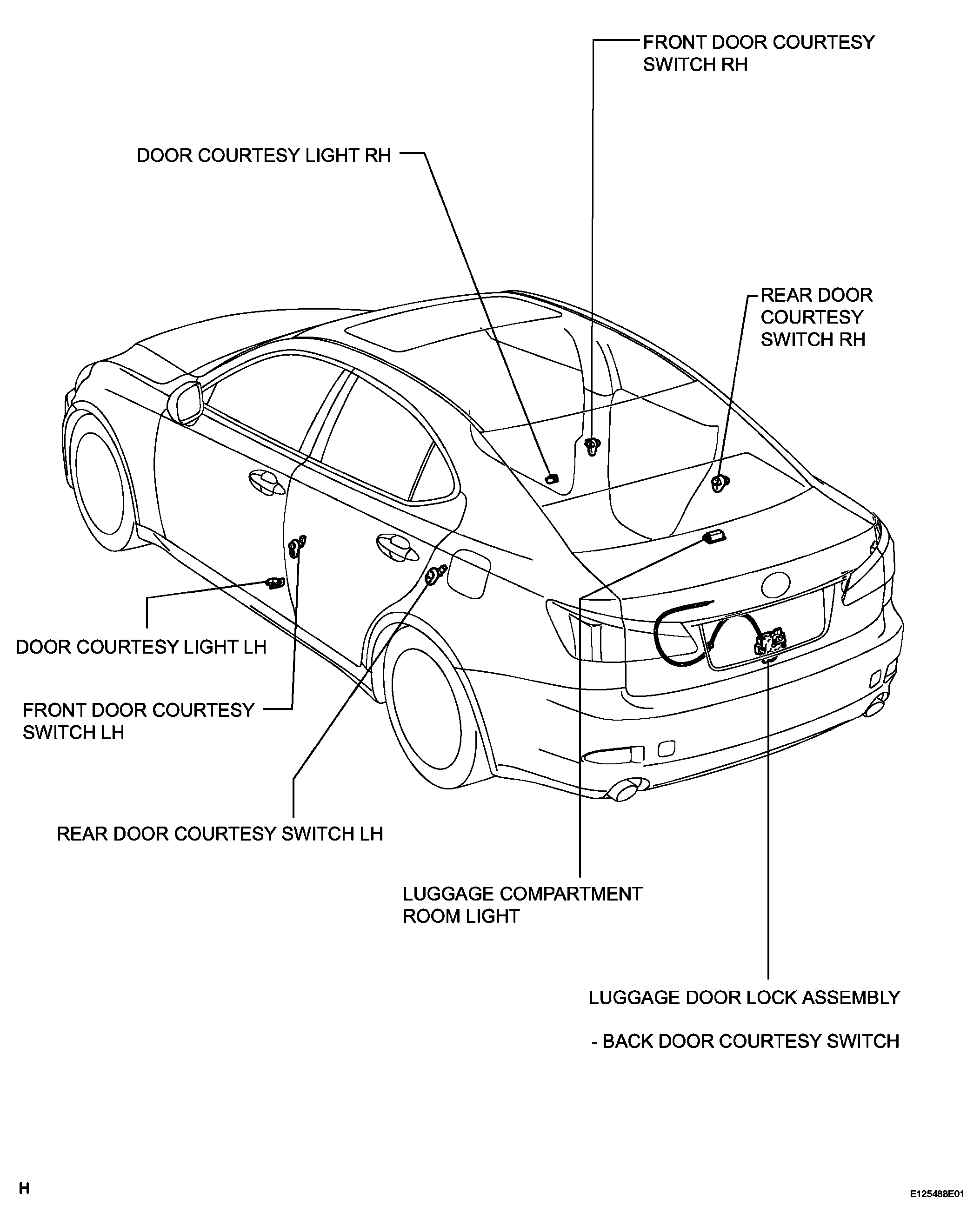

Fig 2: Identifying Lighting System Parts Location (2 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

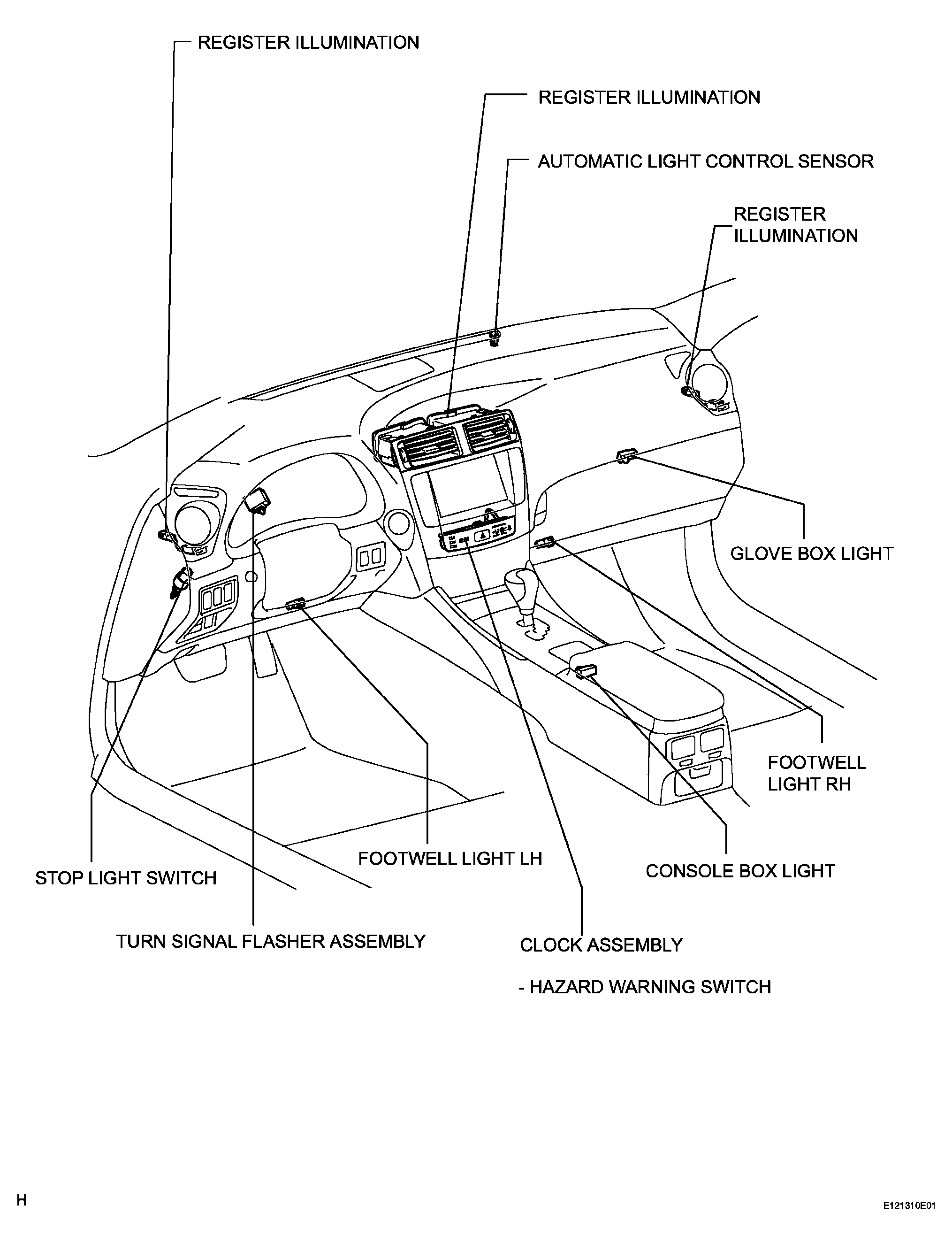

Fig 3: Identifying Lighting System Parts Location (3 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

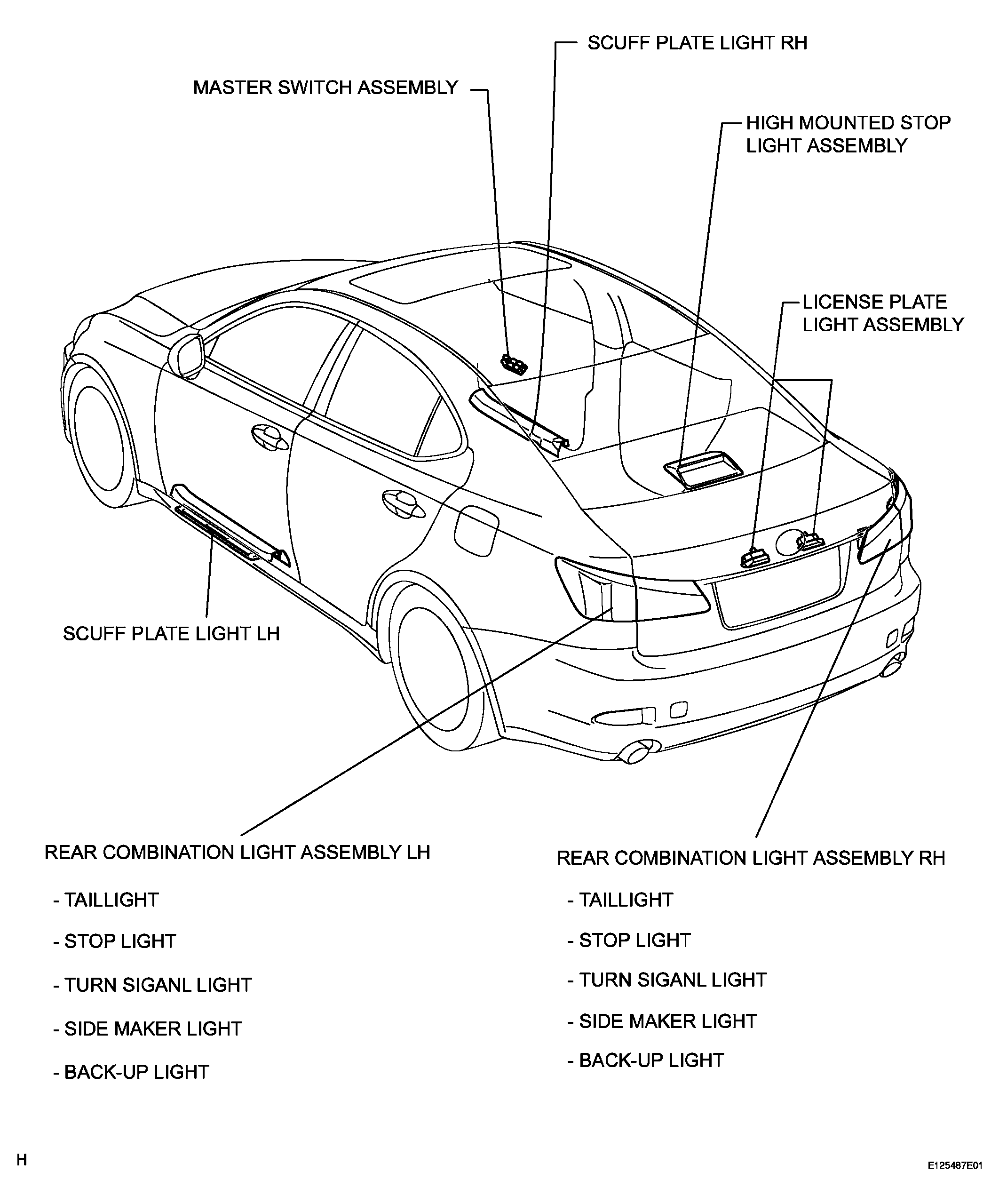

Fig 4: Identifying Lighting System Parts Location (4 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

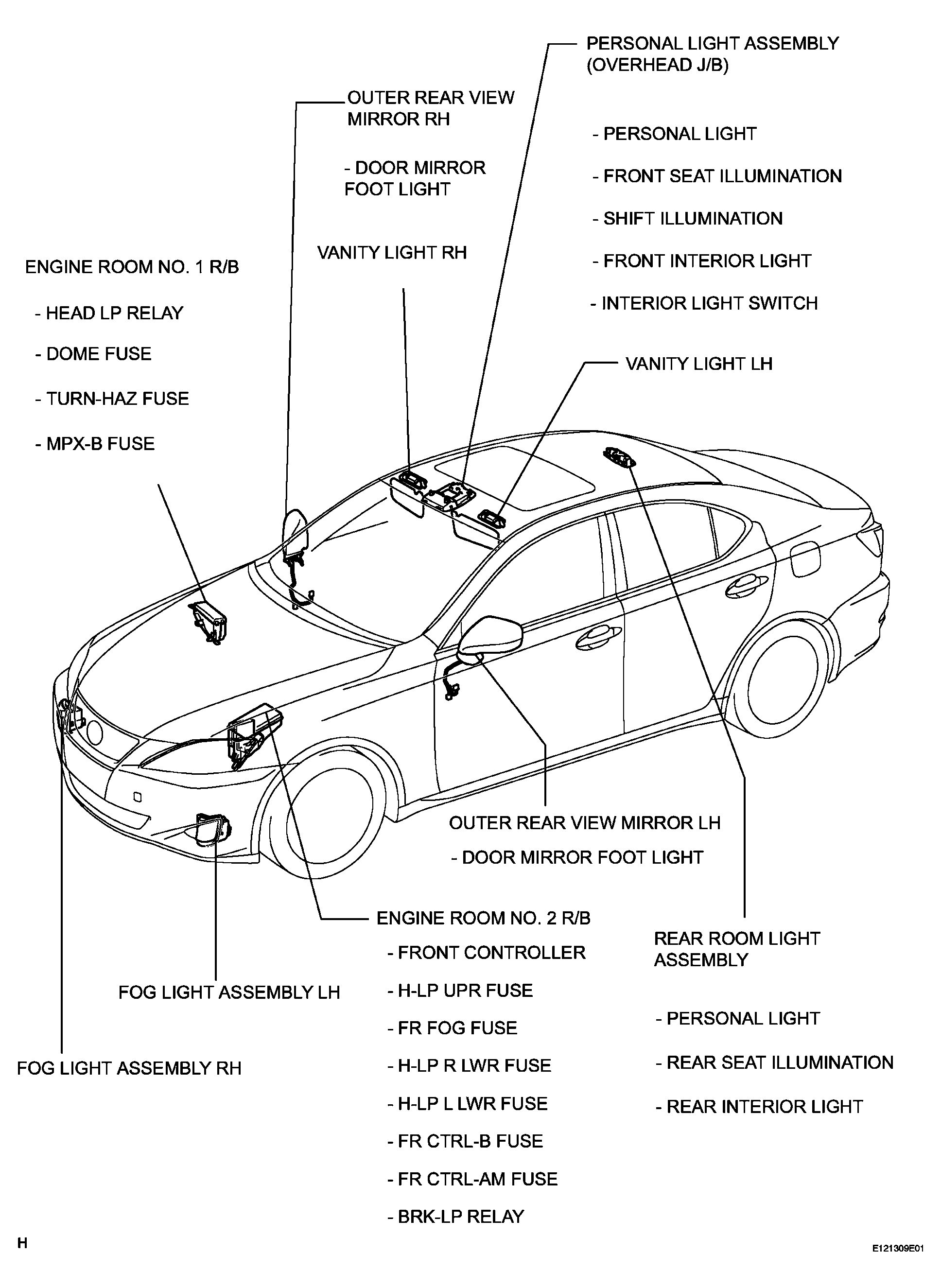

Fig 5: Identifying Lighting System Parts Location (5 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

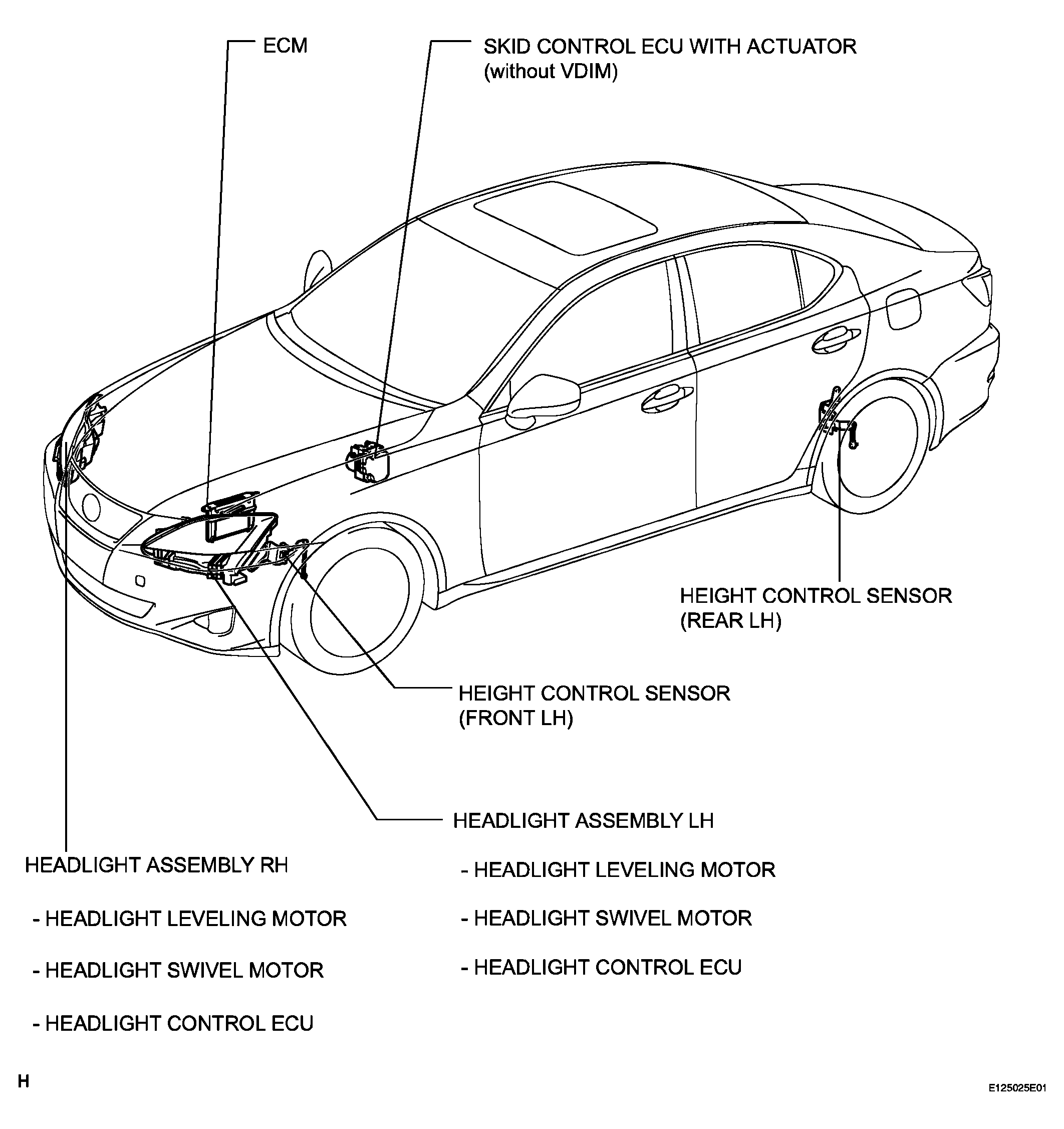

Fig 6: Identifying Lighting System Parts Location (6 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
