High Mounted Stop Light Assembly: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HIGH MOUNTED STOP LIGHT SET
    1. Disengage the 4 claws and disconnect the high mounted stop light set as shown in the illustration.
    2. Disconnect the connector and remove the high mounted (1) led stop light set.

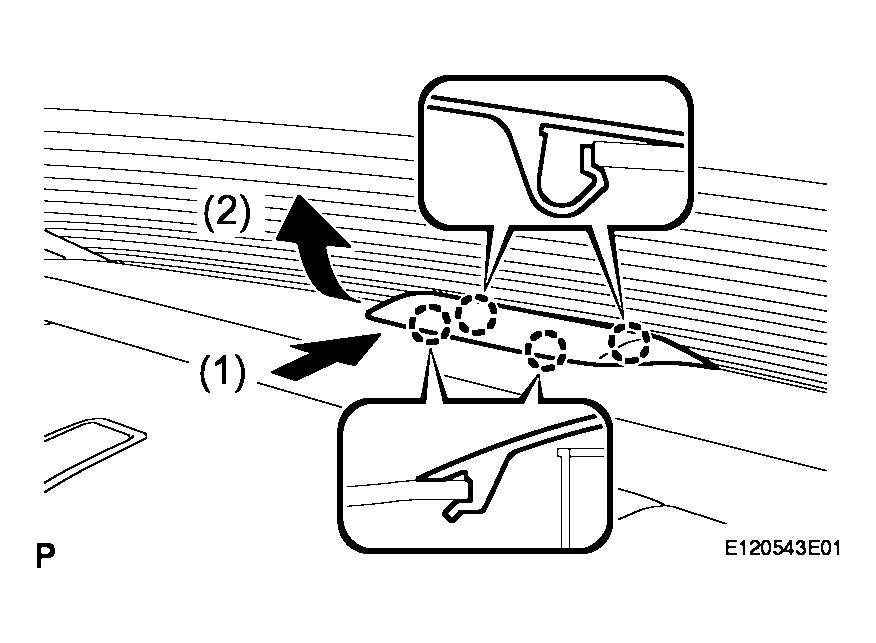

    Fig 1: Identifying High Mounted Stop Light
    G04049572Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
