High Intensity Discharge Headlight Bulb: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL DISCHARGE HEADLIGHT BULB
1. Install the discharge headlight bulb.
  NOTE: After the discharge headlight bulb is replaced, make sure that it comes on. Then, reinstall all the parts that were removed to replace the bulb.
2. Install a new headlight gasket.
NOTE: After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.
INSTALL WASHER HOSE
1. Install the washer hose with the bolt.
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
INSTALL ENGINE ROOM SIDE COVER (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).

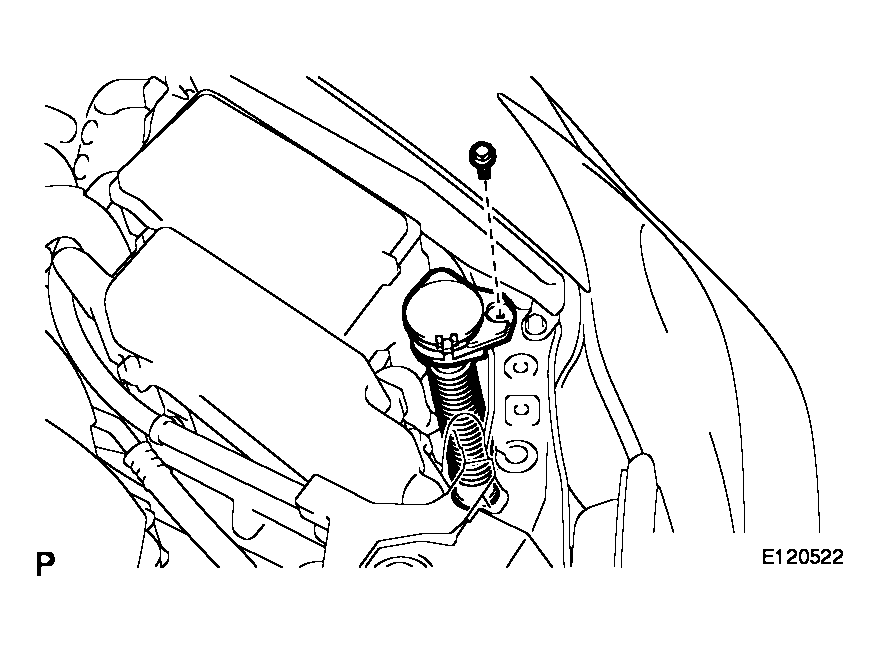

Fig 1: Identifying Washer Hose With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
