Headlight Dimmer Switch: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See PRECAUTION )
  2. REMOVE NO. 2 LOWER STEERING WHEEL COVER (See Step 4 in  REMOVAL  )
  3. REMOVE NO. 3 LOWER STEERING WHEEL COVER (See Step 3 in  REMOVAL  )
  4. REMOVE STEERING PAD (See Step 5 in  REMOVAL  )
  5. REMOVE STEERING WHEEL ASSEMBLY (See Step 11 in  REMOVAL  )
  6. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See Step 12 in  REMOVAL  )
  7. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See Step 12 in  REMOVAL  )
  8. REMOVE SPIRAL CABLE WITH STEERING ANGLE SENSOR (See Step 8 in  REMOVAL  )
  9. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY (See Step 3 in  REMOVAL  )
  10. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Disengage the clamp and claw.

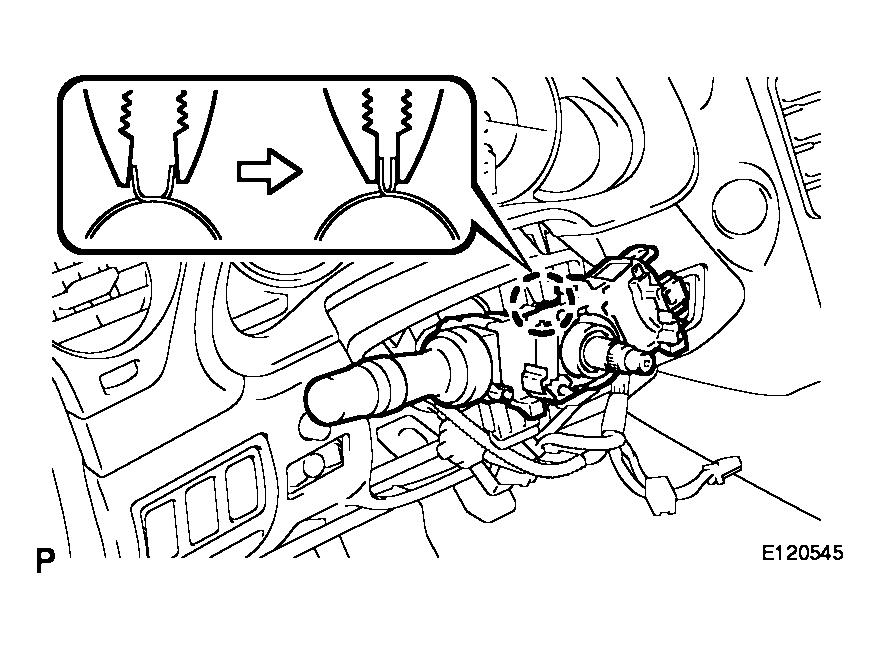

      Fig 1: Identifying Clamp & Claw
      G04049619Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    3. Remove the headlight dimmer switch assembly.

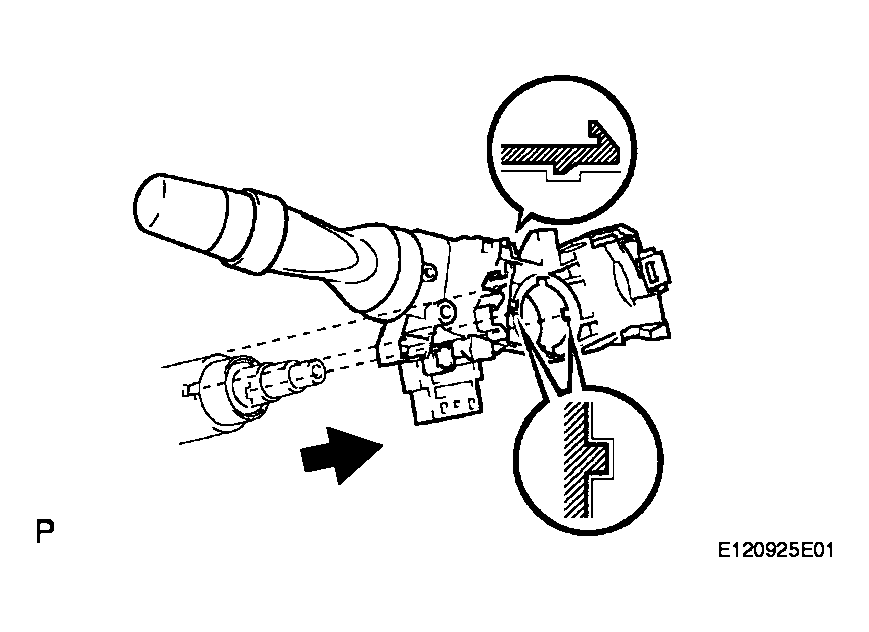

    Fig 2: Identifying Headlight Dimmer Switch Assembly
    G04049620Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
