Glove Box Light: Installation
WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

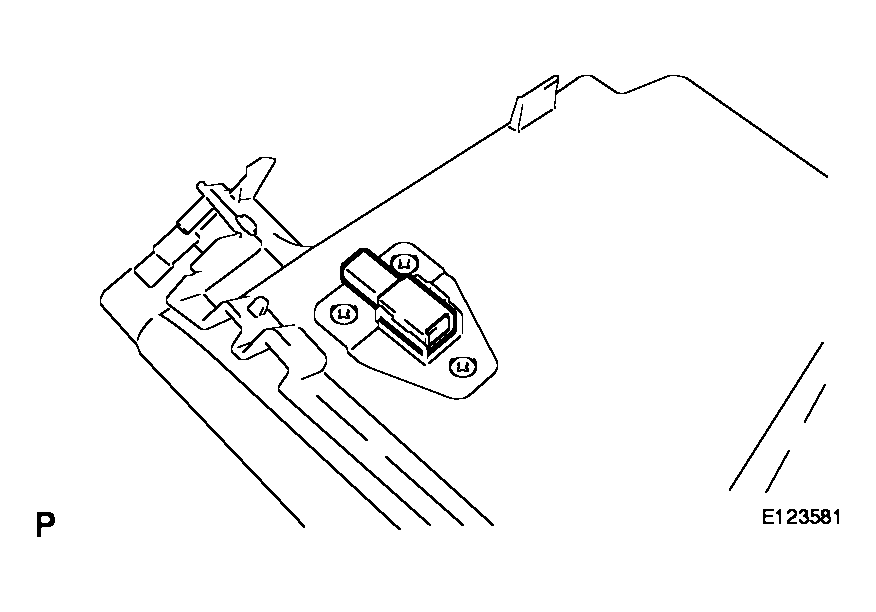

- INSTALL GLOVE BOX LIGHT ASSEMBLY
- Install the glove box light assembly.
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )
- INSTALL PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See INSTALLATION )
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL SIDE INSTRUMENT PANEL RH (See INSTALLATION )
- INSTALL FRONT DOOR OPENING TRIM COVER RH (See INSTALLATION )
- INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
- INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
- INSPECT SRS WARNING LIGHT
(See PROBLEM SYMPTOMS TABLE )
