Front Door Courtesy Switch: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
1. Connect the connector.
2. Using a "torx" socket wrench (T30), install the front door courtesy light switch assembly with the "torx" bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

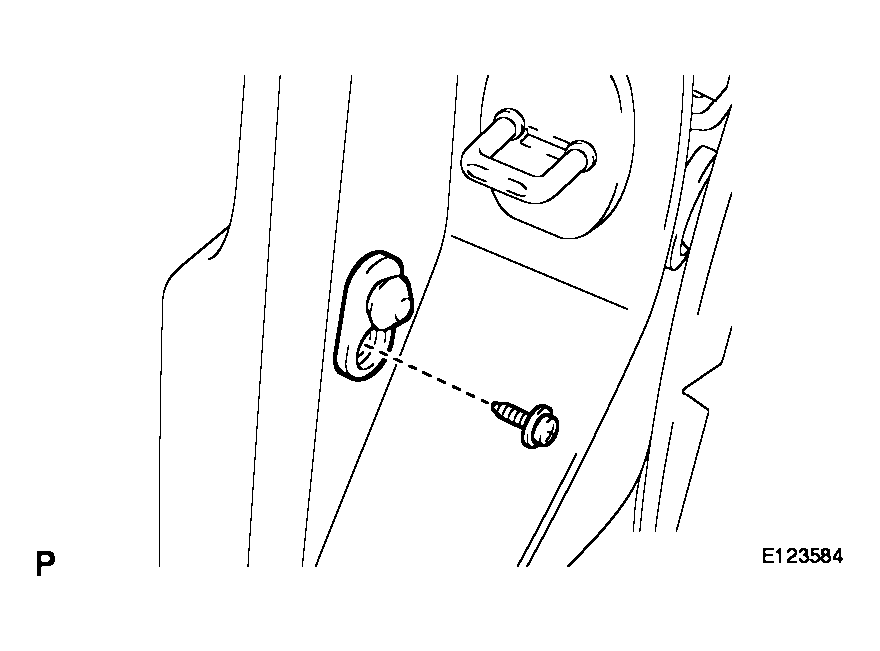

Fig 1: Identifying Front Door Courtesy Light Switch Assembly With Torx Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
