Front Door Courtesy Switch: Inspection

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FRONT DOOR COURTESY SWITCH
    1. Measure the resistance of the switch.

    Standard resistance

    SPECIFIED CONDITION AND TESTER CONNECTION

    Tester Connection Switch Condition Specified Condition
    1 - Switch body Pushed 10 k ohms or higher
    1 - Switch body Not pushed Below 1 ohms

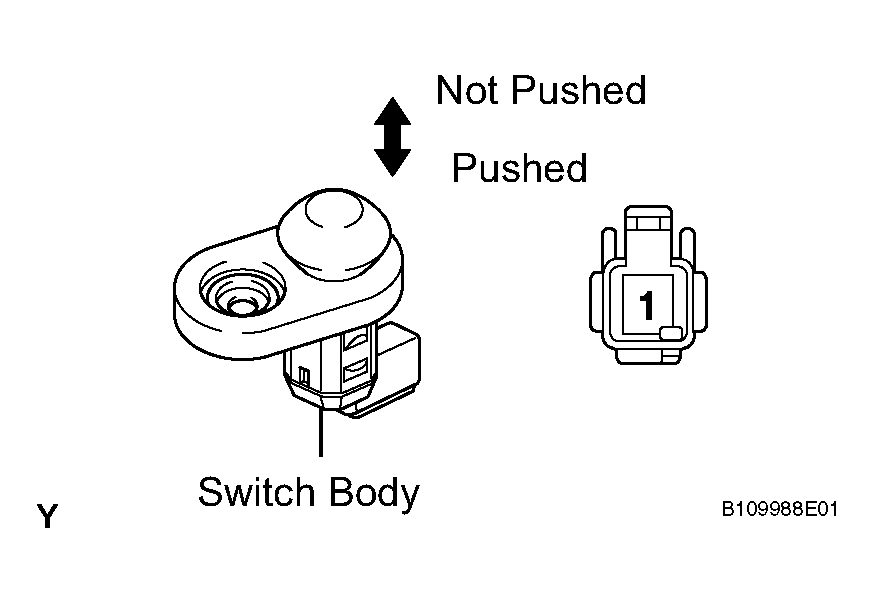

    Fig 1: Inspecting Door Courtesy Switch
    G04055855Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    If the result is not as specified, replace the switch.
