Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE FRONT BUMPER ASSEMBLY (See REMOVAL )
REMOVE FOG LIGHT ASSEMBLY
1. Disengage the clamp.

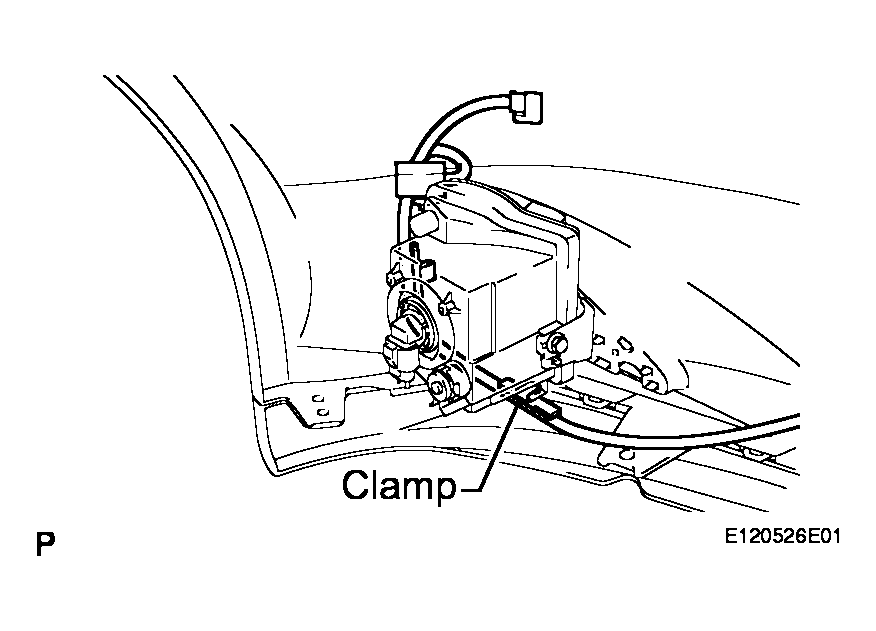

  Fig 1: Identifying Clamp
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Disengage the 3 pins and remove the bolt and fog light assembly.

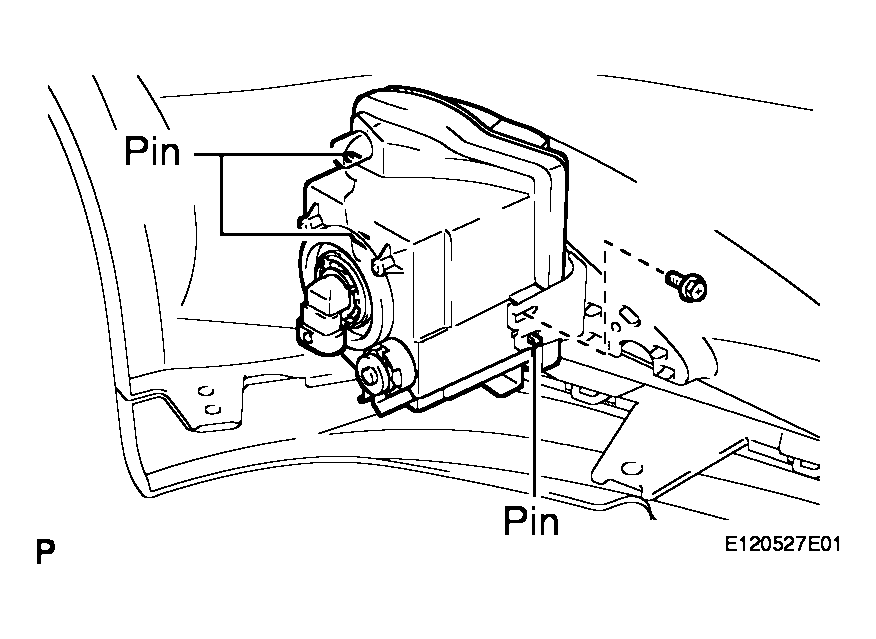

Fig 2: Identifying Bolt, Fog Light Assembly And Pin
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
