FOOTWELL Light: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  2. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH
    1. Remove the No. 1 interior illumination light assembly LH.
  3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )

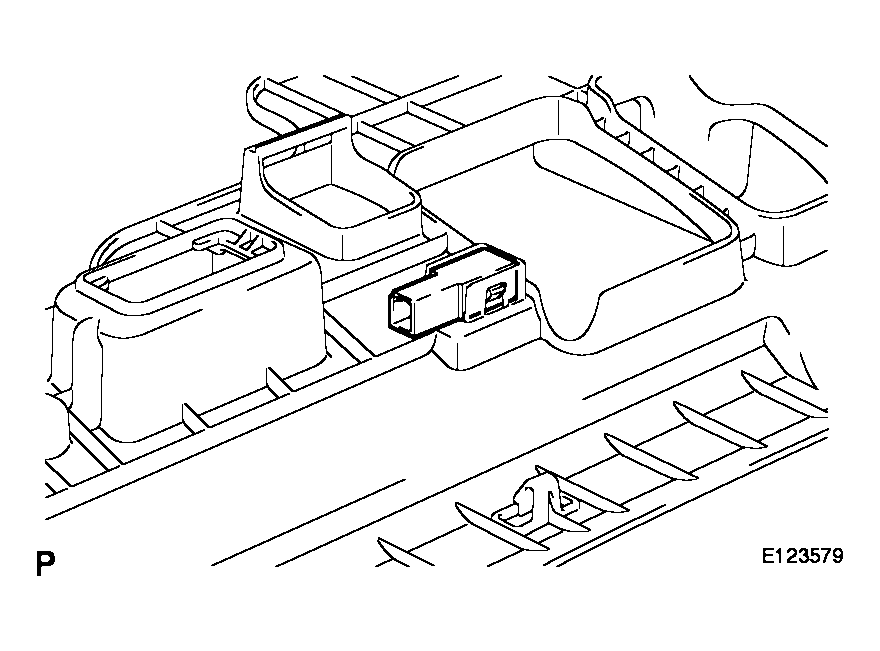

    Fig 1: Identifying No. 1 Interior Illumination Light Assembly LH
    G04049598Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  4. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH
    1. Remove the No. 1 interior illumination light assembly RH.

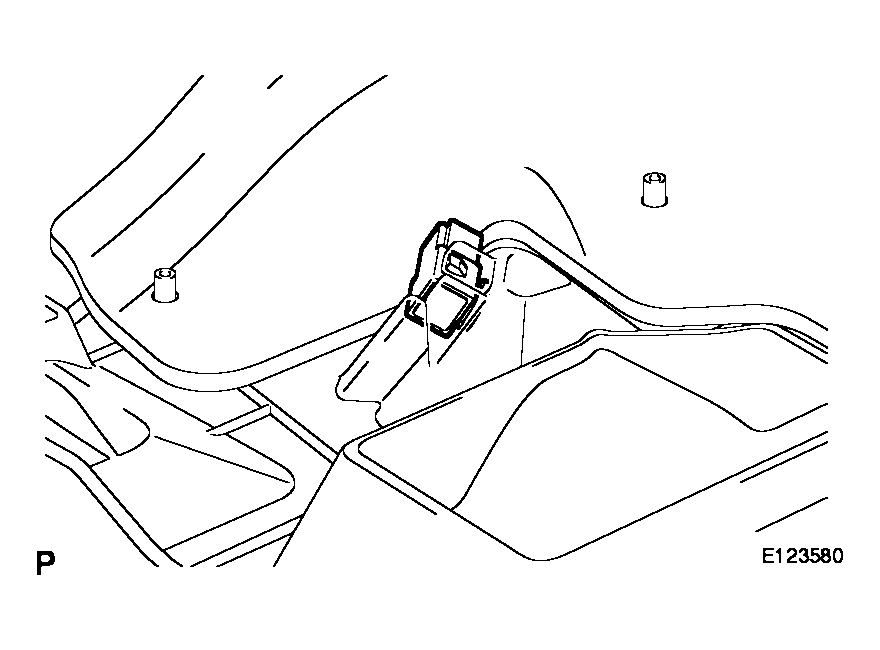

Fig 2: Identifying No. 1 Interior Illumination Light Assembly Rh
G04049599Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
