Back Door Courtesy Switch: Inspection

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT BACK DOOR COURTESY SWITCH
    1. Measure the resistance of the switch.

    Standard resistance

    SPECIFIED CONDITION AND TESTER CONNECTION

    Tester Connection Switch Condition Specified Condition
    Q23-1 - Q23-2 Door LOCK position 10 k ohms or higher
    Q23-1 - Q23-2 Door UNLOCK position Below 1 ohms

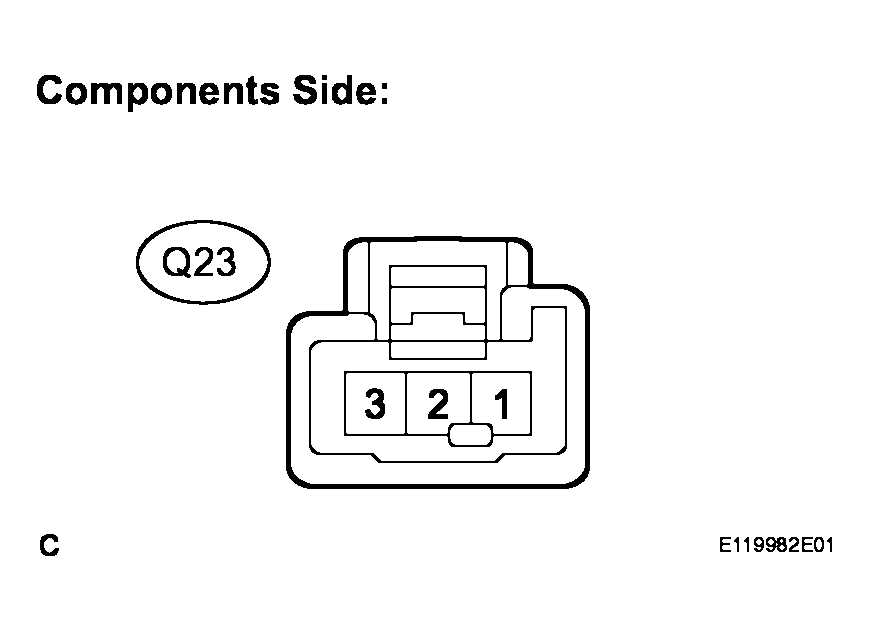

    Fig 1: Inspecting Back Door Courtesy Switch Connector Terminal
    G04049639Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    If the result is not as specified, replace the switch.
