Wiper And Washer System: Precaution

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When disconnecting the negative (-) battery terminal, initialize the following systems after the terminal is reconnected.

SYSTEM REFERENCE TABLE

System Name	See procedure
Power Window Control System	INITIALIZATION

PARTS LOCATION

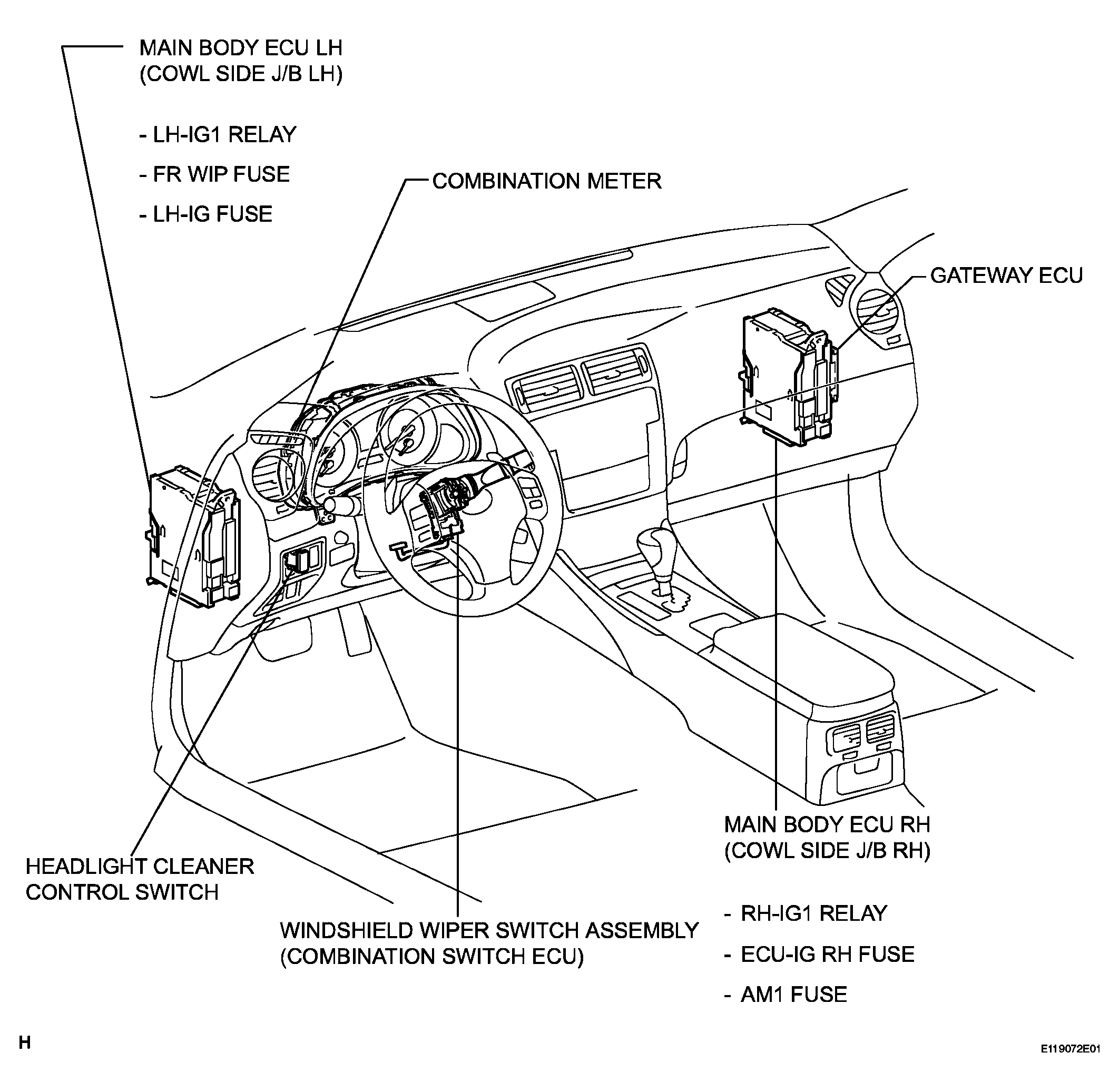

Fig 1: Identifying Wiper & Washer System Parts Location (1 Of 2)

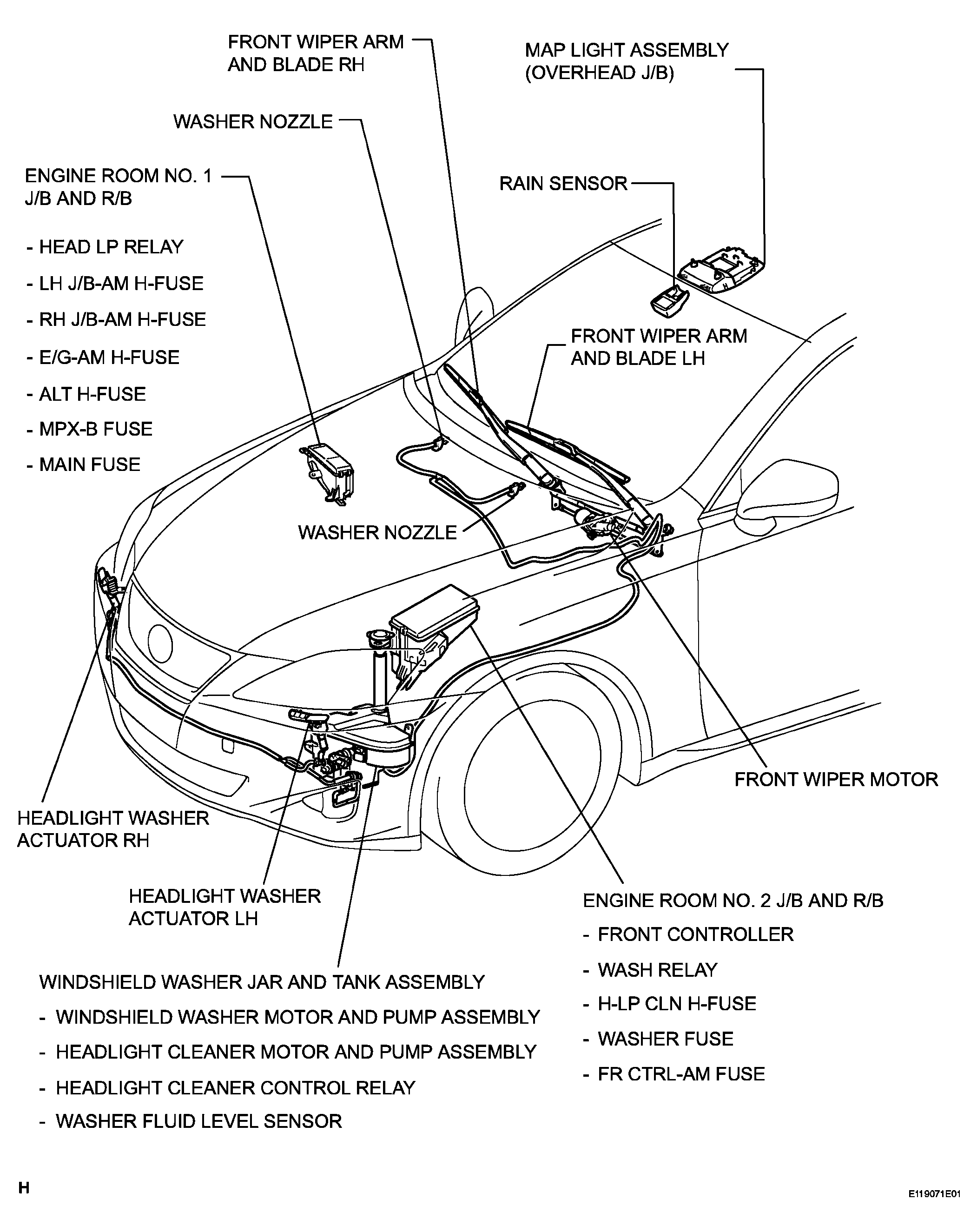

Fig 2: Identifying Wiper & Washer System Parts Location (2 Of 2)
