Rain Sensor: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL RAIN SENSOR TAPE

Peel off the releasing sheet (yellow side) and attach the rain sensor tape on the position indicated in Fig 1 (the sensor part of the rain sensor) while pushing out air bubbles with fingers.
Peel off the releasing sheet (white side).

NOTE:

When reusing the rain sensor, clean up dirt on the sensor part with a cloth, etc.
Do not touch the sensor tape surface directly with fingers.

AREA MEASUREMENT DESCRIPTION TABLE

Area	Measurement
A	45.5 mm (1.791 in.)
B	24.7 mm (0.972 in.)
C	10.0 mm (0.393 in.)
D	9.8 mm (0.385 in.)

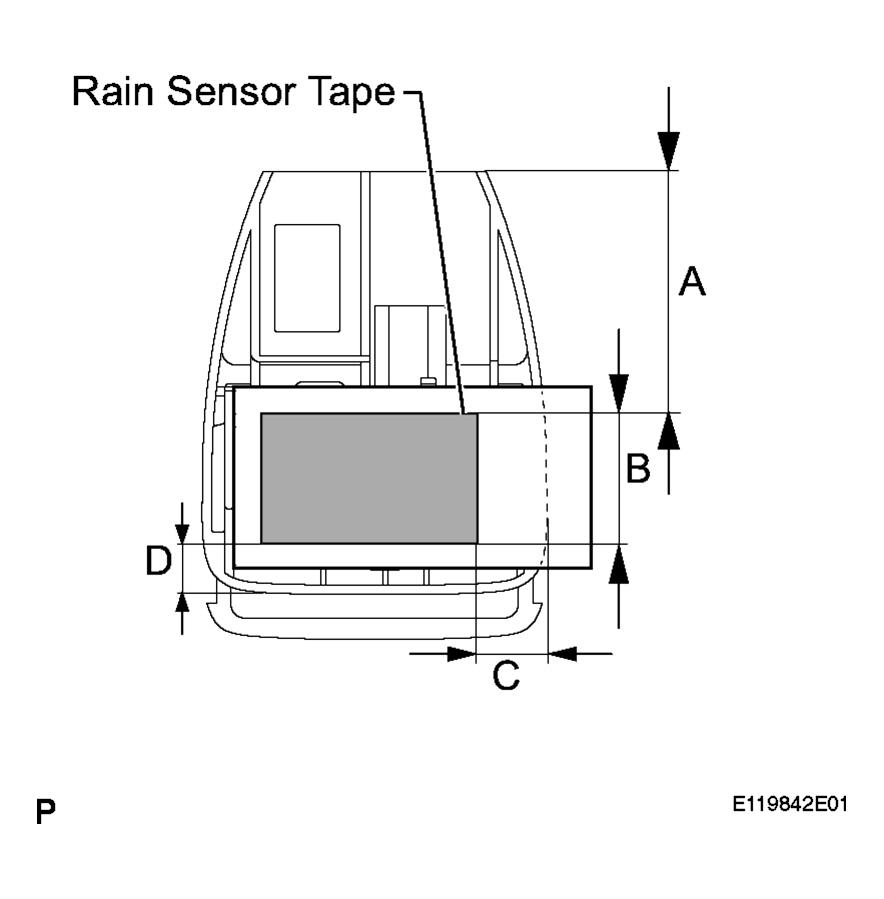

Fig 1: Identifying Rain Sensor Tape

INSTALL RAIN SENSOR

Connect the connector.
Engage the claw to set the position.
Gradually attach the rain sensor to the glass surface to prevent air bubbles from forming in between them.

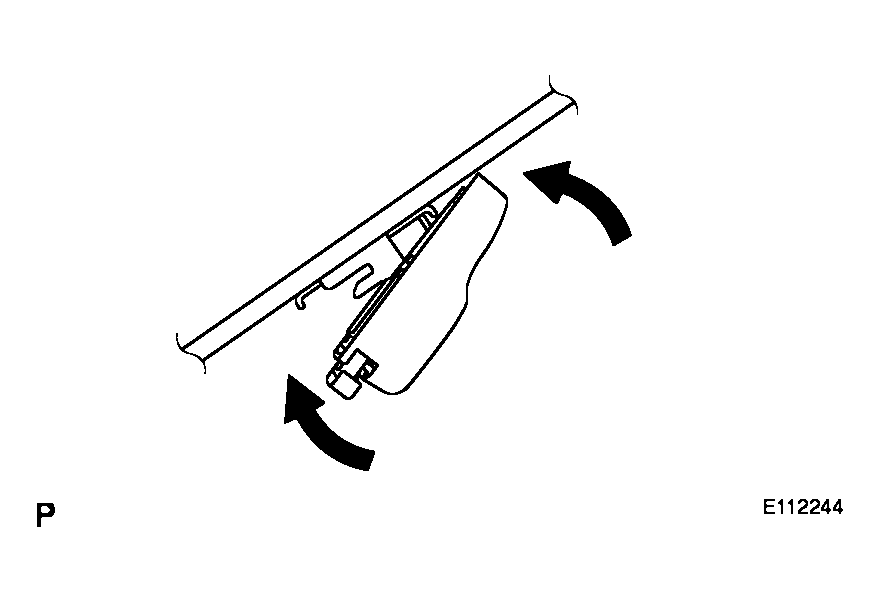

Fig 2: Engaging Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Push in the stopper.

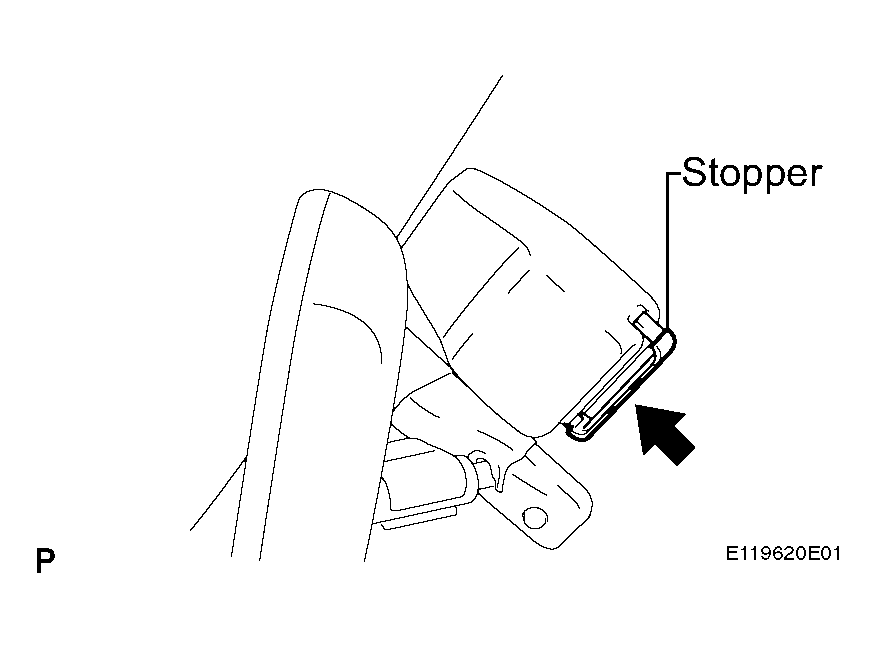

Fig 3: Pushing In Stopper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Do not touch the sensor tape surface and the glass surface directly with fingers.
- Clean up dirt on the glass with a cloth, etc.
- After installing the rain sensor, there should be no air bubbles between the windshield glass and the rain sensor tape.
