WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

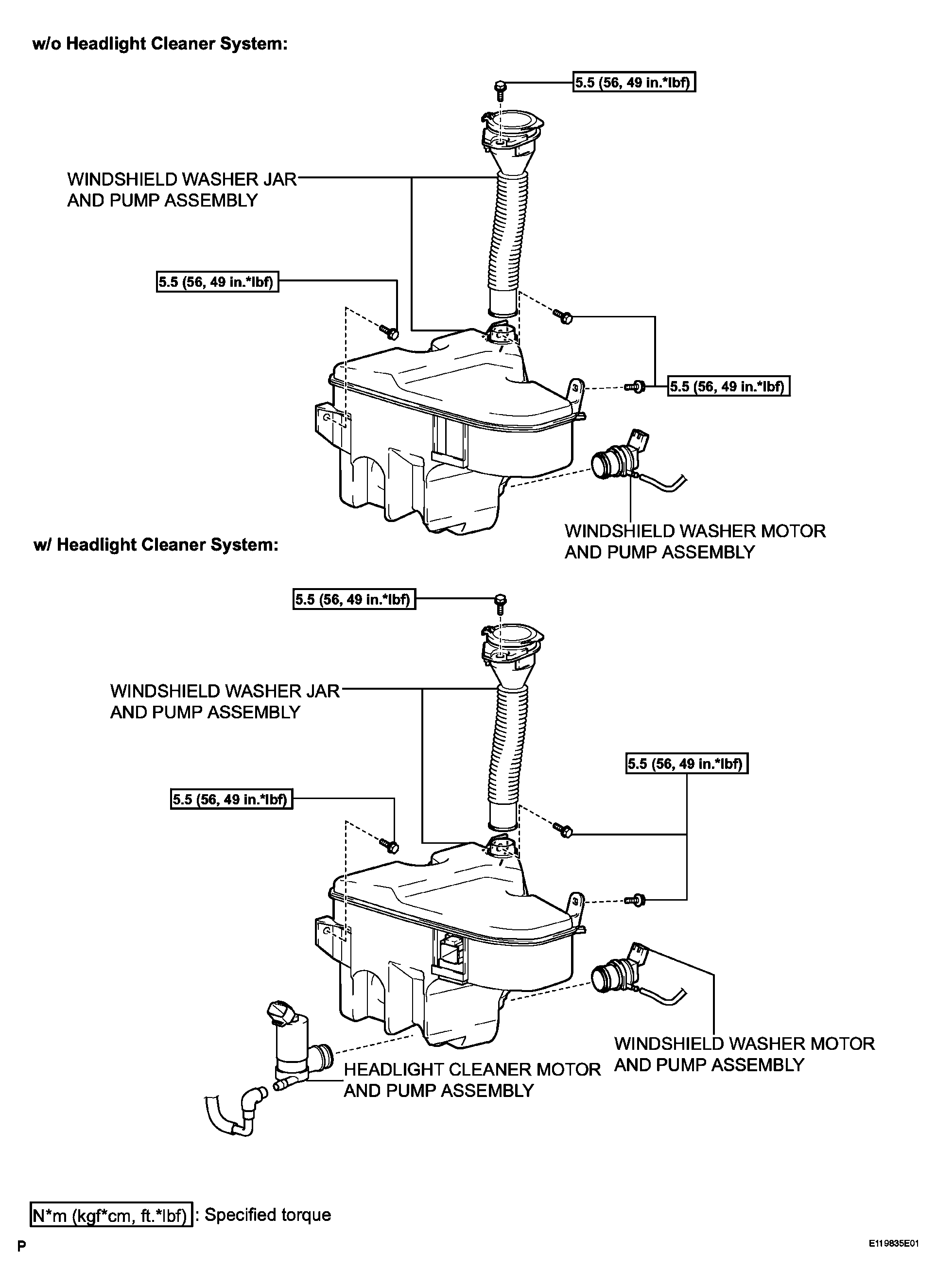

Fig 1: Front Washer Motor Replacement Components (1 Of 2) With Torque Specifications
