Steering Angle Sensor Communication Stop Mode: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

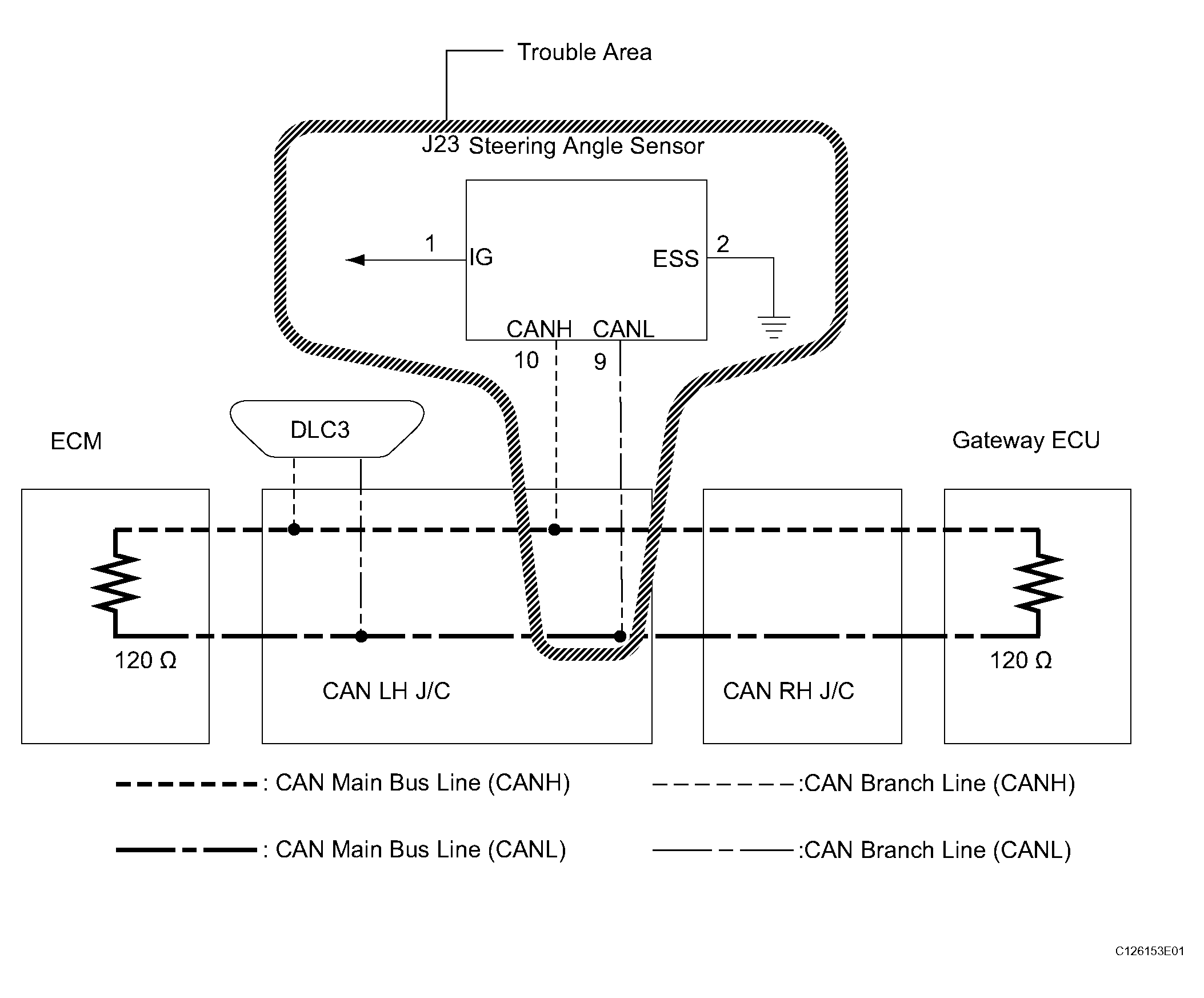

Fig 1: Identifying Steering Angle Sensor Communication Wiring Diagram
G04051949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
