Toe Control Link: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR WHEEL
REMOVE TOE CONTROL LINK
1. Disconnect the skid control sensor connector.
2. Remove the bolt and separate the skid control sensor wire from the toe control link.
3. Remove the nut on the axle carrier side.

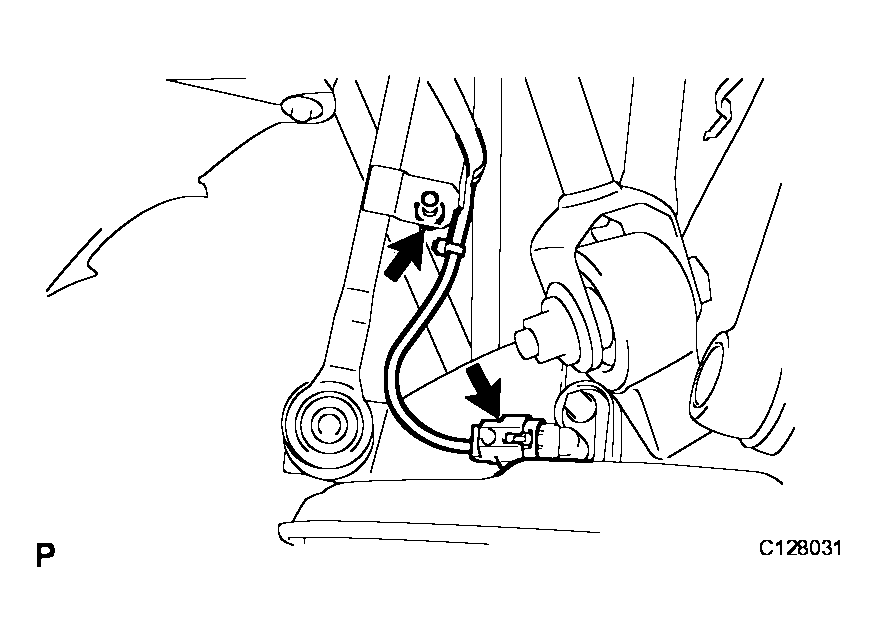

  Fig 1: Disconnecting Skid Control Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST, disconnect the toe control link.
  SST 09628-00011
  NOTE:
  - Securely tie the string of the SST to the vehicle.
  - Do not damage the dust cover.
  - Securely set the SST on the spacer of the axle carrier.
  - If the spacer of the axle carrier comes off, replace the axle carrier with a new one.

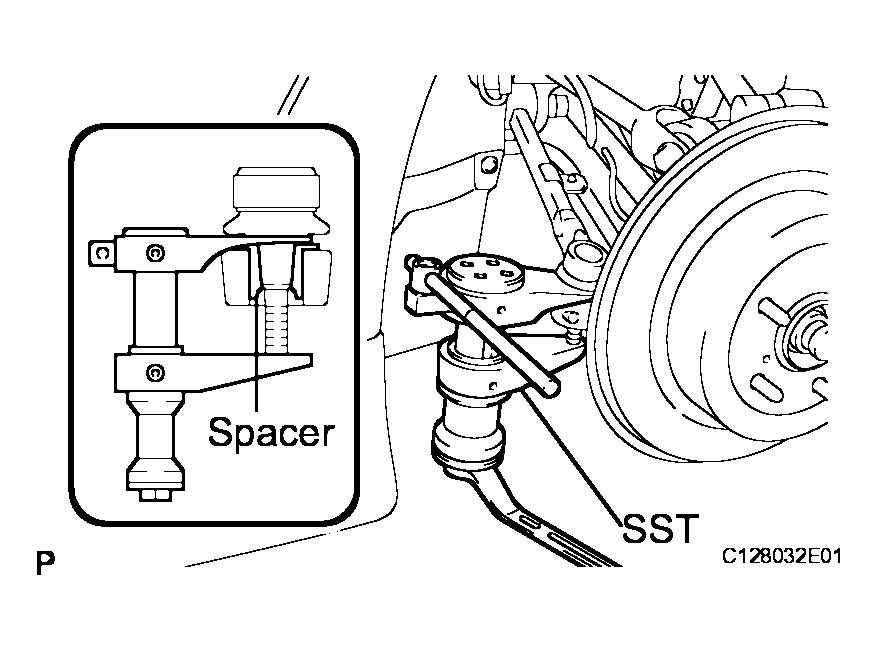

  Fig 2: Disconnecting Toe Control Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Put matchmarks on the rear No. 2 suspension toe adjust plate and rear suspension member.
6. Remove the nut, rear suspension toe adjust cam assembly, rear No. 2 suspension toe adjust plate, and toe control link.

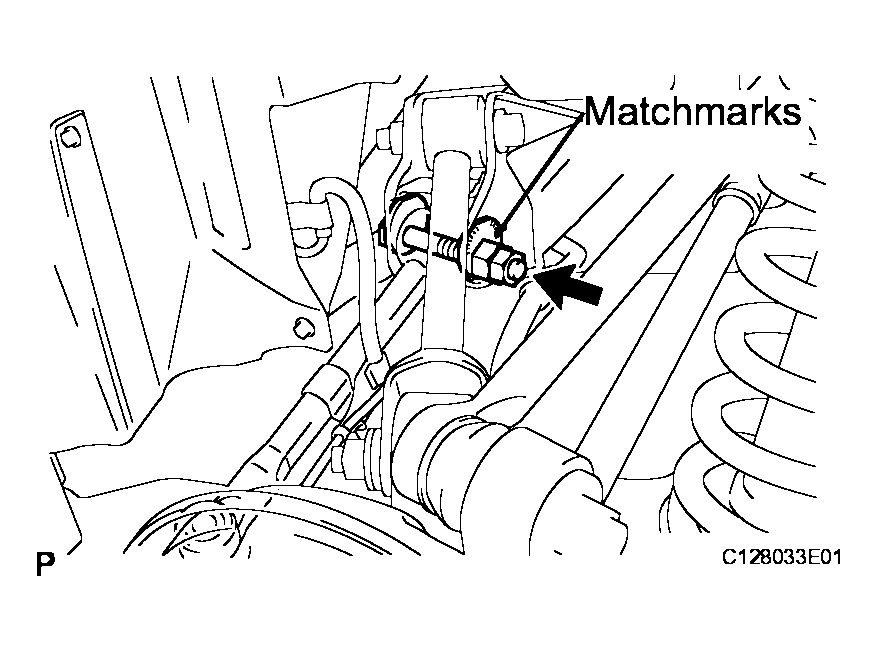

Fig 3: Putting Matchmarks On Rear No. 2 Suspension Toe Adjust Plate & Rear Suspension Member
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
