Rear Airbag Sensor: Installation
WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL REAR AIRBAG SENSOR
- Check that the engine switch is off.
- Check that the battery negative (-) terminal is disconnected.CAUTION: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.

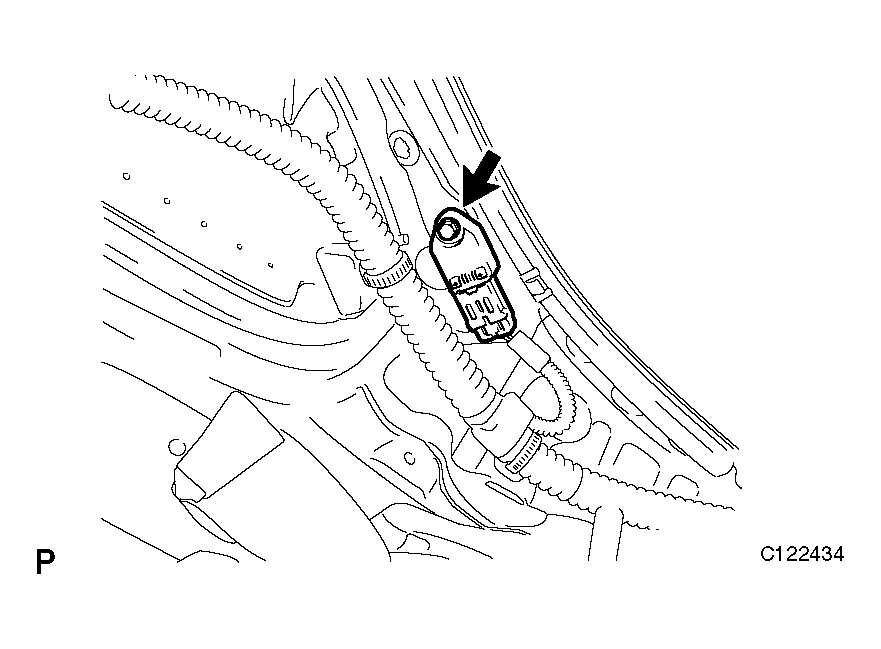

- Install the rear airbag sensor with the bolt.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
NOTE:- If the rear airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the rear airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
- Check that there is no looseness in the installation parts of the rear airbag sensor.
- Connect the connector.
- INSTALL REAR SEAT SIDE GARNISH (See INSTALLATION )
- INSTALL REAR DOOR SCUFF PLATE (See INSTALLATION )
- INSTALL REAR SEATBACK ASSEMBLY (See INSTALLATION )
- INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
- INSTALL REAR SEAT HEADREST ASSEMBLY
- INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (See INITIALIZATION
).
HINT:
Some systems need initialization when disconnecting the cable from the negative battery terminal.
- Perform initialization (See INITIALIZATION
).
- INSPECT SRS WARNING LIGHT
- Inspect the SRS warning light (PROBLEM SYMPTOMS TABLE ).
