Front Passenger Airbag Assembly: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
    1. Connect the 2 connectors and the 2 clamps to the front passenger airbag assembly.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

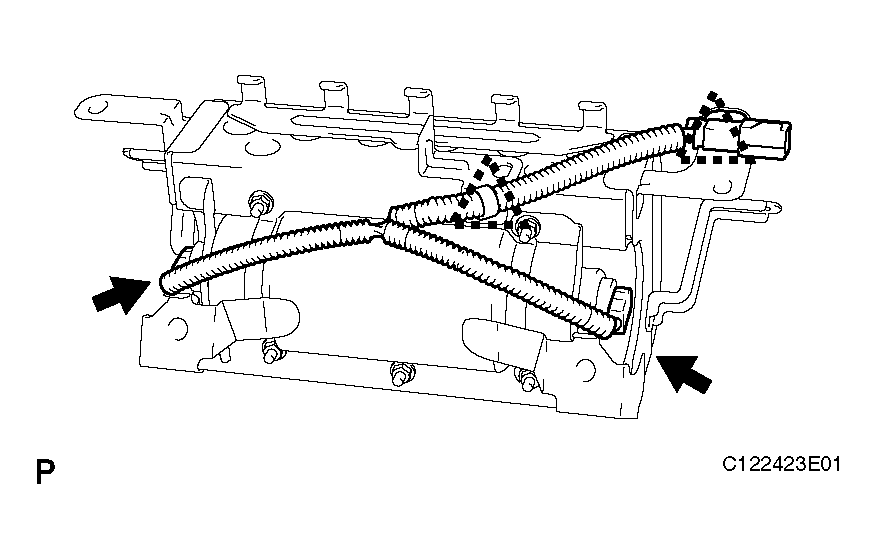

      Fig 1: Identifying Connectors
      G04048857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 hooks (A).
    3. Engage the 5 hooks (B) and install the front passenger airbag assembly on the instrument panel.

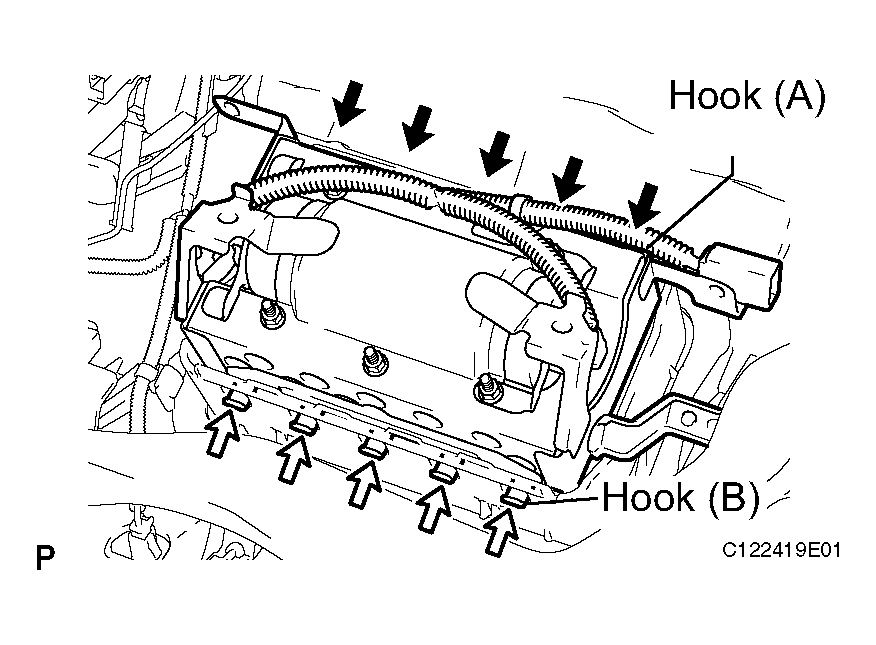

      Fig 2: Installing Front Passenger Airbag Assembly On Instrument Panel
      G04048858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 2 screws.
  2. INSTALL SIDE DEFROSTER NOZZLE NO.2 DUCT (See  REASSEMBLY  )
  3. INSTALL HEATER TO REGISTER NO.3 DUCT (See  REASSEMBLY  )
  4. INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY

    HINT:

    Refer to the procedures from "INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY " (See INSTALLATION ).

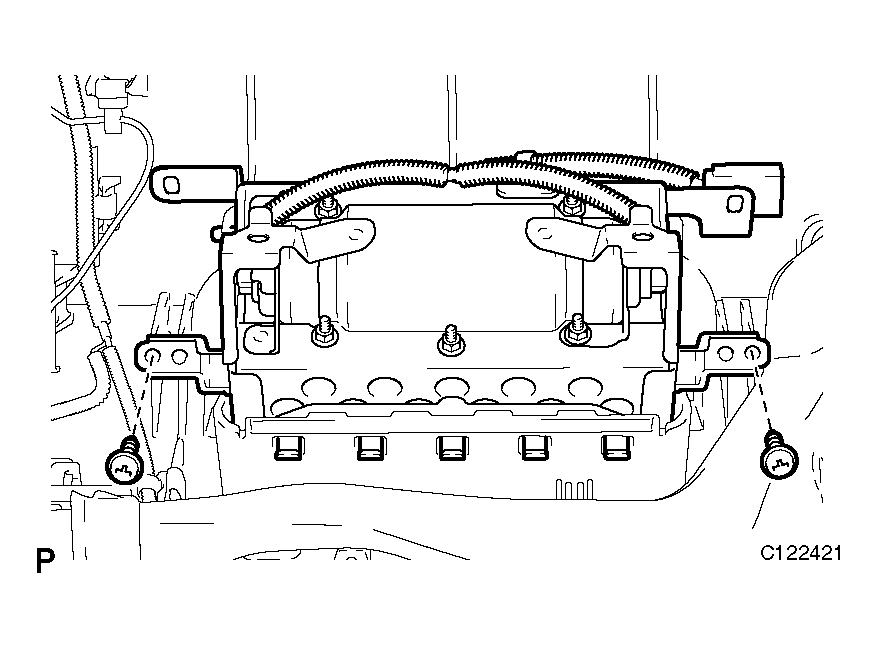

    Fig 3: Identifying Screws
    G04048859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY
    1. Connect the connector.
  6. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
  7. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY (See  REMOVAL   )
  8. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  9. INSTALL INSTRUMENT SIDE PANEL RH (See  INSTALLATION  )
  10. INSTALL FRONT DOOR OPENING TRIM COVER RH (See  INSTALLATION  )
  11. INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination)
  12. INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination)
  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  14. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).

      HINT:

      Some systems need initialization after reconnecting the cable to the negative battery terminal.

  15. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (PROBLEM SYMPTOMS TABLE  ).

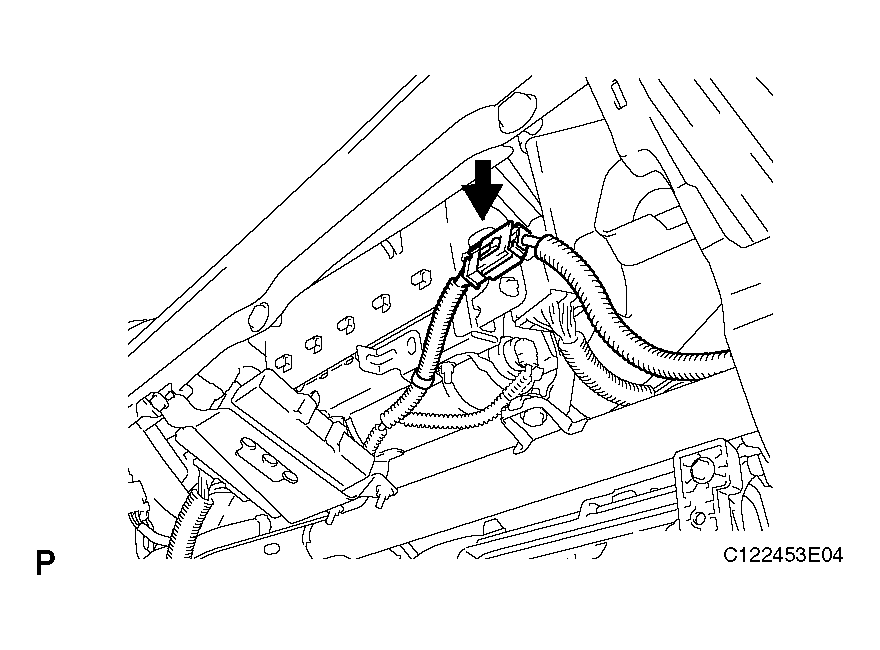

    Fig 4: Identifying Connector
    G04048860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
