Component Inspection

Check "OUTPUT SPEED SENSOR"

Ignition "OFF".
Disconnect the "OUTPUT SPEED SENSOR" connector.
Measure resistance between terminal "1","2" and "2","3" and "1","3" of the "OUTPUT SPEED SENSOR" connector.
Specification: Refer to DATA REFERENCE CHART

Fig 1: Identifying Output Speed Sensor And Sensor Ground
Courtesy of KIA MOTORS AMERICA, INC.

Is resistance within specifications?

[REFERENCE DATA]

DATA REFERENCE CHART

Data	Reference Data
Current	22 mA
Air Gap	Input sensor	1.3 mm
Air Gap	Output sensor	0.85 mm
Resistance	1 (red) - 2 (black)	Infinite
	1 (black) - 2 (red)	Approx. 3.89 MΩ
	1 (red) - 3 (black)	Approx. 6.55 MΩ
	1 (black) - 3 (red)	Approx. 5.27 MΩ
	2 (red) - 3 (black)	Approx. 17.5 MΩ
	2 (black) - 3 (red)	Infinite

YES : --> Go to 2 "CHECK TCM (PCM)" as below.

no : --> Replace "OUTPUT SPEED SENSOR" as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

CHECK TCM (PCM)
1. Ignition "ON" & Engine "OFF".
2. Connect "OUTPUT SPEED SENSOR" connector.
3. Install scantool and select a SIMU-SCAN.
4. Simulate frequency to OUTPUT SPEED SENSOR signal circuit.

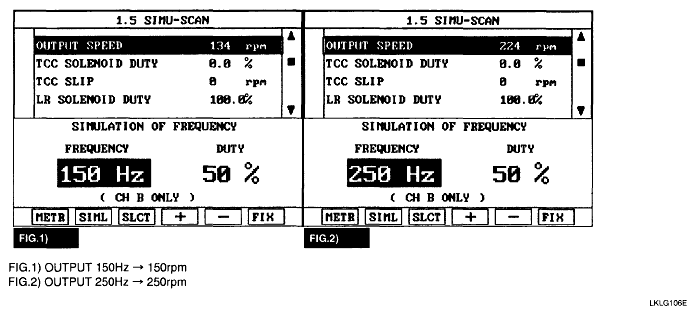

  Fig 2: Display Screen Of - Output Speed
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is "OUTPUT SPEED SENSOR" signal value changed according to simulation frequency?
  YES : --> Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  no : --> Substitute with a known-good TCM (PCM) and check for proper operation. If the problem is corrected, replace TCM (PCM) as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
