Front Lower Arm: Installation

Install the lower arm mounting bolts (A, B).
Tightening torque N.m (kgf.m, lb-ft):

Bolt (A): 98.1 -117.7 (10.0 -12.0, 72.3 -86.8)

Bolt (B): 137.3 -156.9 (14.0 -16.0, 101.3 -115.7)

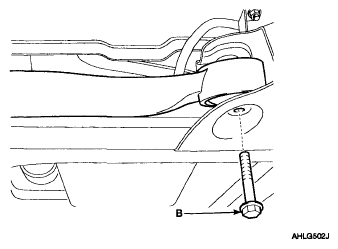

Fig 1: Identifying Lower Arm Mounting Bolt (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

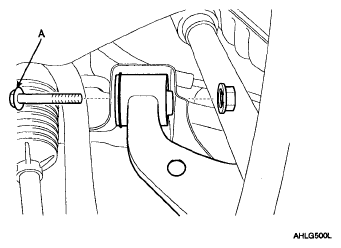

Fig 2: Identifying Lower Arm Mounting Bolt (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Install the front lower arm (A) mounting bolt (B) to the knuckle.
Tightening torque N.m (kgf.m, lb-ft):

98.1 -117.7 (10.0 -12.0, 72.3 -86.8)

Fig 3: Identifying Front Lower Arm And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the wheel and the tire (A) to the front hub (B).
Tightening torque N.m (kgf.m, lb-ft):

88.3 -107.9 (9 -11, 65.1 -79.5)

Fig 4: Identifying Front Wheel And Tire, Front Hub And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
