Front Lower Arm: Components

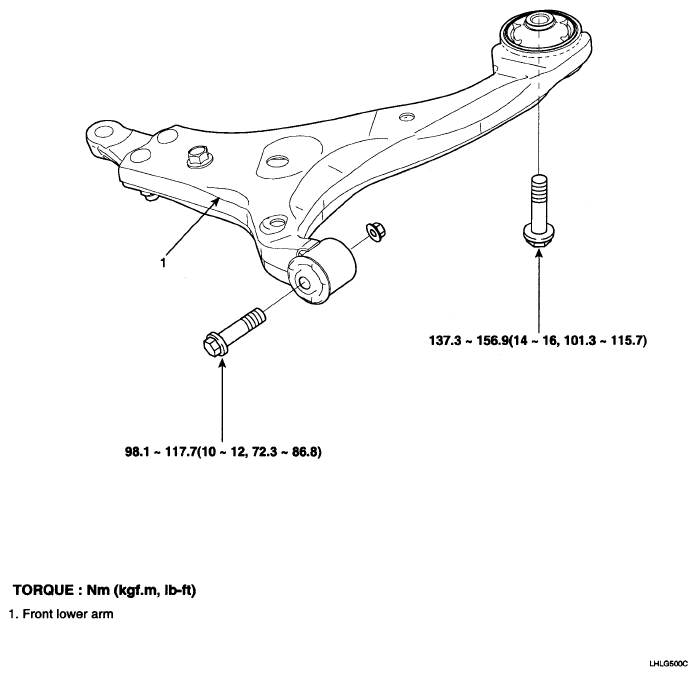

Fig 1: Front Lower Arm Bolts With Torque Specifications

G04805356

Courtesy of KIA MOTORS AMERICA, INC.
