Power Steering Hoses: Components

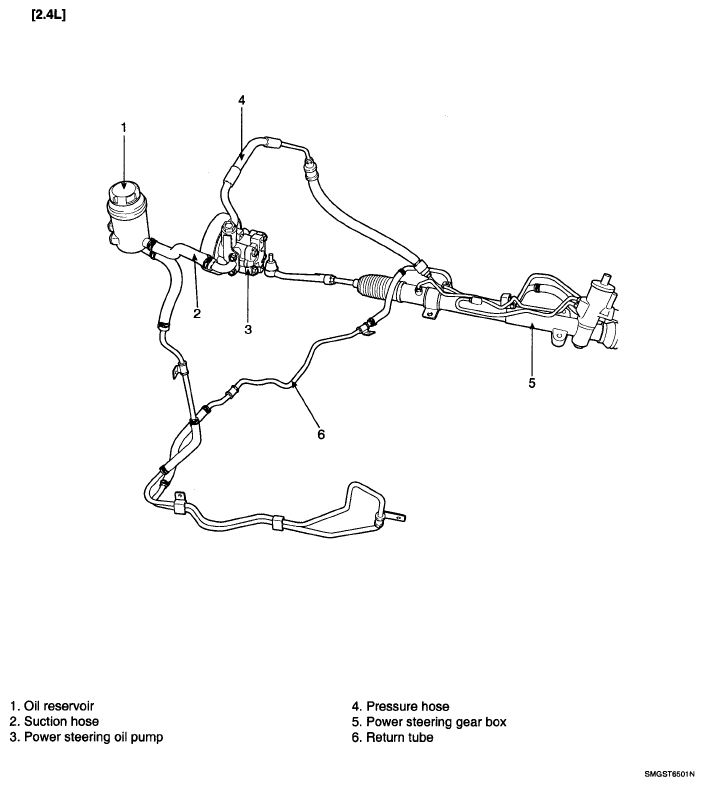

Fig 1: Identifying Power Steering Hoses Components (2.4L)
G04805612Courtesy of KIA MOTORS AMERICA, INC.

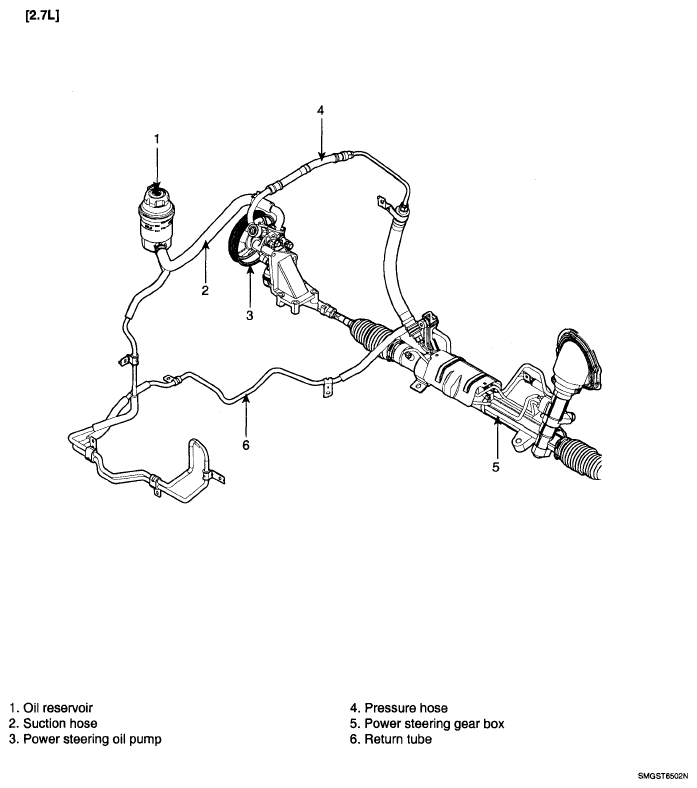

Fig 2: Identifying Power Steering Hoses Components (2.7L)
G04805613Courtesy of KIA MOTORS AMERICA, INC.
