Rear Combination Light Assembly: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR LIGHT ASSEMBLY
    1. Install the rear light assembly with the 3 nuts.
    2. Connect the connector.
    Fig 1: Identifying Rear Light Assembly With Nuts
    G04049561Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
  3. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See  REASSEMBLY  )
  4. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE (See  REASSEMBLY  )
  5. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
  6. INSTALL REAR COMBINATION LIGHT ASSEMBLY
    1. Install the rear combination light assembly with the clip and pin.
    2. Install the 3 nuts.

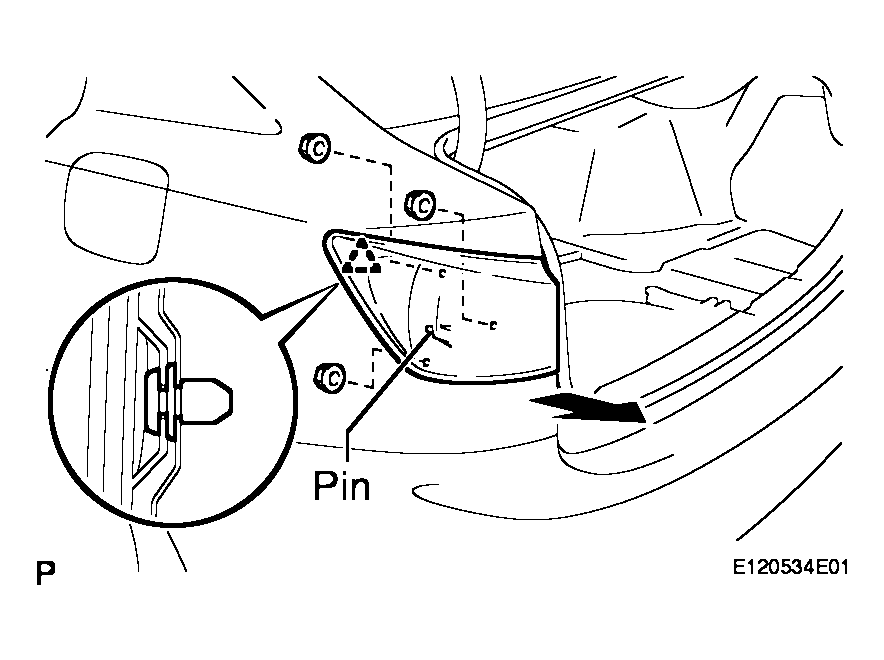

      Fig 2: Identifying Rear Combination Light Assembly With Clip And Pin
      G04049562Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    3. Connect the connector.
  7. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
  8. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
  9. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
  10. INSTALL ROPE HOOK
  11. INSTALL NO. 2 ROOM LIGHT ASSEMBLY
  12. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
  13. INSTALL ROPE HOOK ASSEMBLY
  14. INSTALL DECK SIDE TRIM BOX RH
  15. INSTALL DECK SIDE TRIM BOX LH
    Fig 3: Identifying Connector
    G04049563Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  16. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER
