Headlight Assembly: Repair

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEADLIGHT PROTECTOR RETAINER
HINT:
- If the installation area of the headlight assembly is damaged, use the supply retainer for low-cost repair.
- Ensure that the headlight assembly is not damaged.
1. Cut off the part shaded in the illustration and sand smooth with sandpaper.

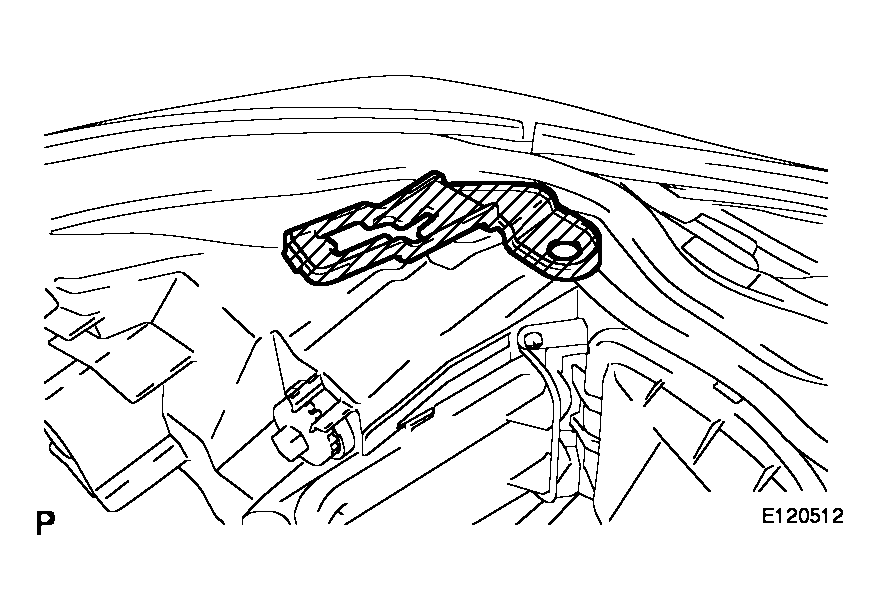

  Fig 1: Identifying Headlight Protector Retainer
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

  NOTE: After cutting off the part, place the headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.
2. Install the headlight protector retainer with the 2 screws.

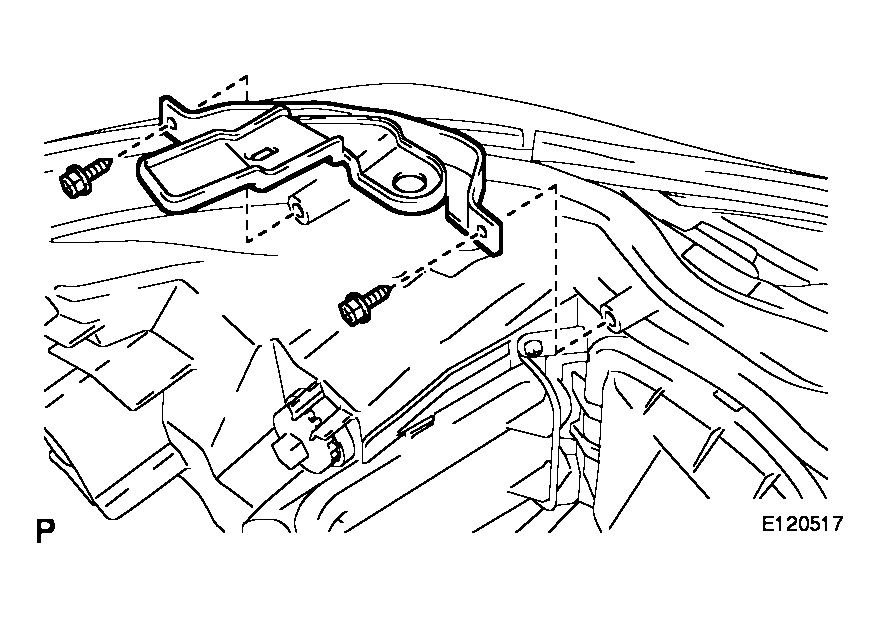

Fig 2: Identifying Headlight Protector Retainer With Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
