Front Seat: Components

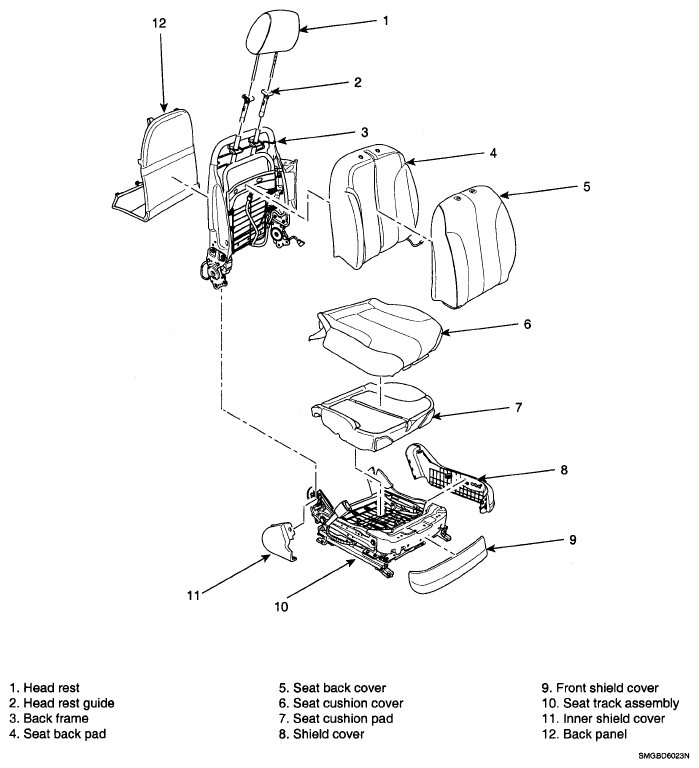

Fig 1: Identifying Front Seat Components

G04806145

Courtesy of KIA MOTORS AMERICA, INC.
