Calibration Procedure
If the display read "C", calibrate the compass.
- Driving the vehicle in a circle at less than 8km/h 2 times or until the compass heading appears.
- Driving in a circle in right-handed direction and opposite direction are possible, and if the calibration is completed, the compass heading will appear.
- Keep driving in a circle until a compass heading appears.
TO ADJUST THE ZONE SETTING:
- Determine the desired zone number based upon your current location on the zone maps.
- Press and hold the Feature Control button for more than 6 but less than 9 seconds, the current zone number will appear on the display (B).
- Pressing and holding the feature control button (A) again will cause the numbers to increment (note: they will repeat ...13, 14, 15, 1, 2,..). Releasing the button when the desired zone number appears on the display will set the new zone.
- Within about 5 seconds the compass will start displaying a compass heading again.
TO RE-CALIBRATE THE COMPASS:
There are some conditions that can cause changes to the compass response. Items such as installing a ski rack or a antenna or even some body repair work on the vehicle can cause changes to the vehicle's magnetic field. In these situations, the compass will need to be re-calibrated to quickly correct for these changes.
- Press and hold the feature control button (A) for more than 9 seconds. When the compass memory is cleared, a "C" will appear in the display (B).
- To calibrate the compass, drive the vehicle in 2 complete circles at less than 8 KPH (5 MPH).

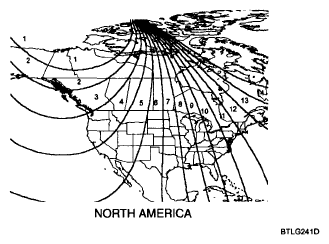

ZONE MAP
