Multi Function Switch: Specifications: Components

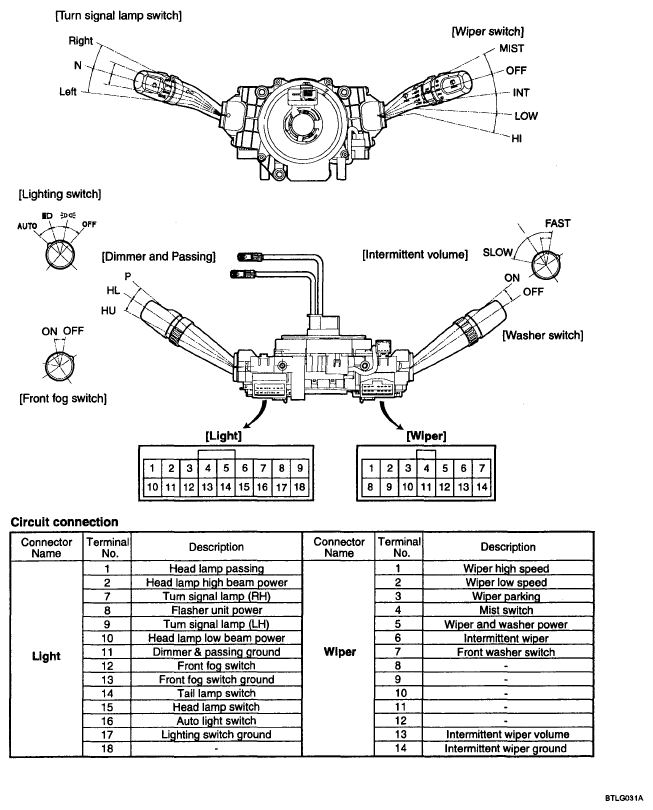

Fig 1: Identifying Multi Function Switch Components

G04806319

Courtesy of KIA MOTORS AMERICA, INC.
