Audio Unit: Component

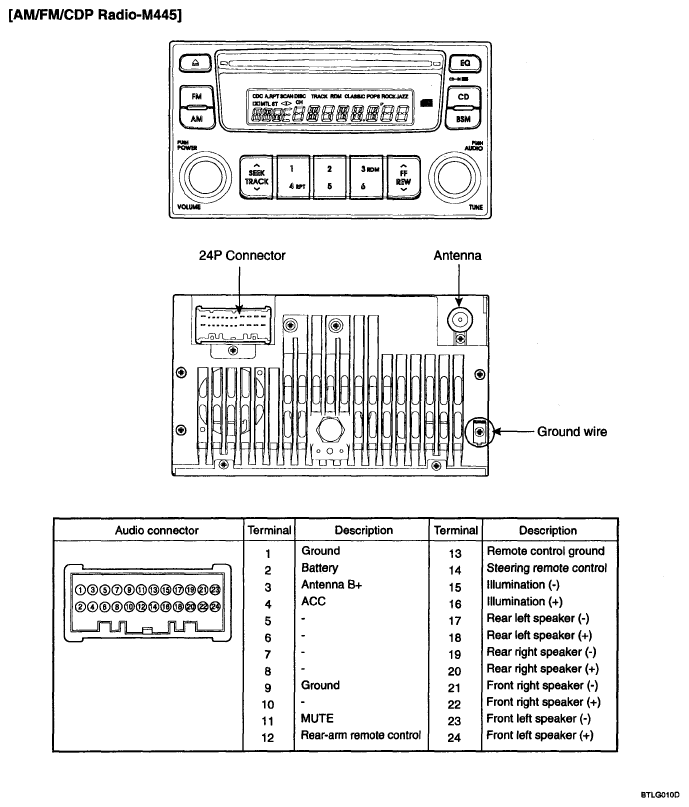

Fig 1: Identifying Audio Unit Component (AM/FM/CDP Radio-M445)
Courtesy of KIA MOTORS AMERICA, INC.

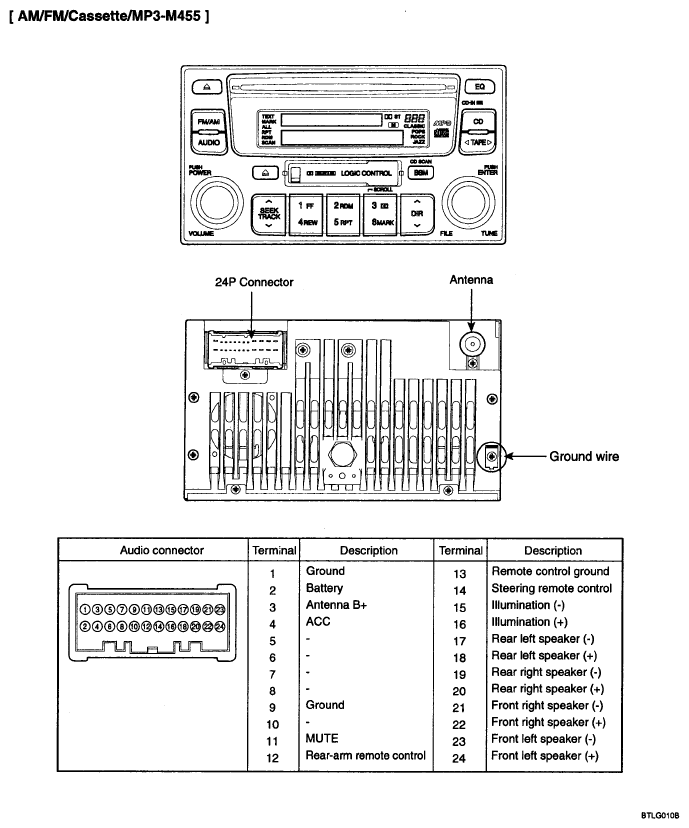

Fig 2: Identifying Audio Unit Component (AM/FM/Cassette/MP3-M455)
Courtesy of KIA MOTORS AMERICA, INC.

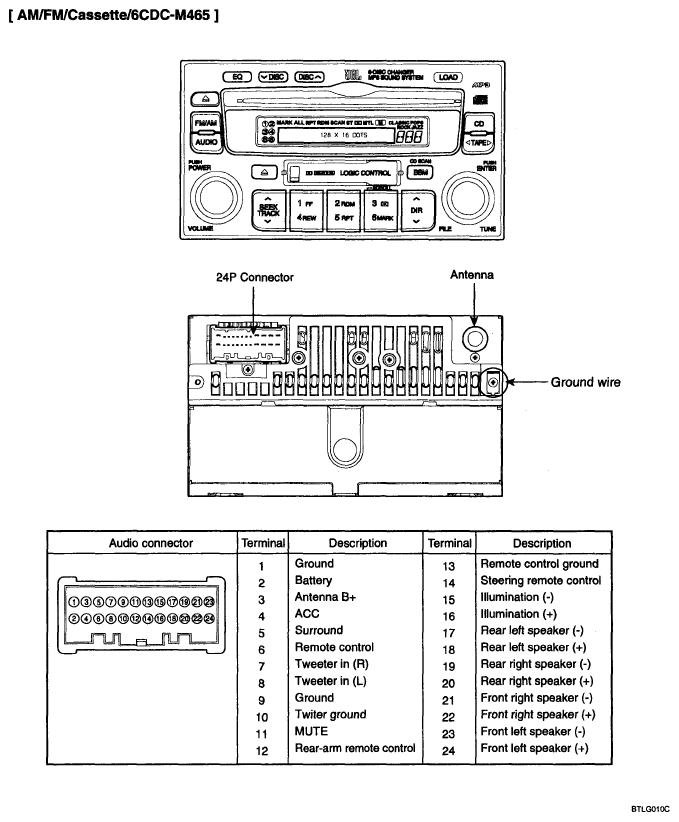

Fig 3: Identifying Audio Unit Component (AM/FM/Cassette/6CDC-M465)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
