VFS (Variable Force Solenoid) Valve Control Feature

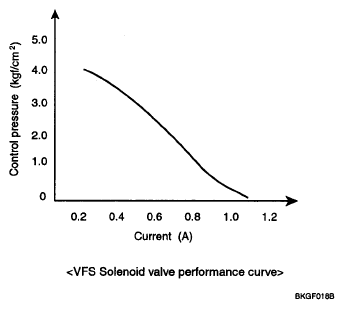

Fig 1: VFS Valve Performance Curve

Courtesy of KIA MOTORS AMERICA, INC.

VFS valve is controlled linearly according to the current value.

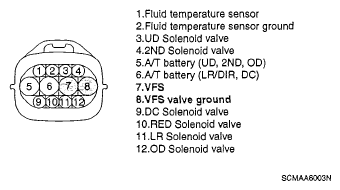

Fig 2: Identifying VFS Valve Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
