Front Stabilizer Bar: Installation

Install the bushing (A) and the bracket (B) to the stabilizer bar.

Fig 1: Identifying Bushing And Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Connect the stabilizer link (A) with the stabilizer bar by tightening the nut.
Tightening torque N.m (kgf.m, lb-ft):

100 ~ 120 (10.0 ~ 12.0, 72 ~ 87)

Fig 2: Disconnecting/Connecting Stabilizer Link
Courtesy of KIA MOTORS AMERICA, INC.
Install the stabilizer to the sub-frame by tightening the bracket mounting bolts (A).
Tightening torque N.m (kgf.m, lb-ft):

45 ~ 55 (4.5 ~ 5.5, 33 ~ 40)

Fig 3: Identifying Bracket Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

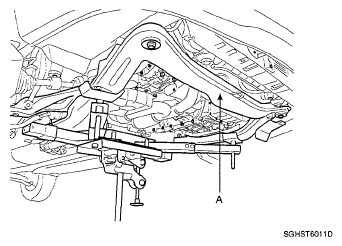

Install the-sub frame (A) and the sub-frame stay by tightening the mounting bolts and nuts.
Tightening torque N.m (kgf.m, lb-ft):

Sub-frame mounting bolts: 100 ~ 120 (10.0 ~ 12.0, 72 ~ 87)

Sub-frame stay mounting bolt and nut: 45 ~ 55 (4.5 ~ 5.5, 33 ~ 40)

Fig 4: Identifying Sub-Frame
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the rear roll stopper mounting bolts (A).
Tightening torque N.m (kgf.m, lb-ft):

50 ~ 65 (5.0 ~ 6.5, 40 ~ 47)

Fig 5: Identifying Rear Roll Stopper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the front roll stopper through bolt (A) and nut.
Tightening torque N.m (kgf.m, lb-ft):

50 ~ 65 (5.0 ~ 6.5, 40 ~ 47)

Fig 6: Identifying Front Roll Stopper Through Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install the muffler rubber hanger (A).

Fig 7: Identifying Muffler Rubber Hanger
Courtesy of KIA MOTORS AMERICA, INC.
Connect the mounting fork (A) with the lower arm (B) and tighten the through bolt (C) and nut.
Tightening torque N.m (kgf.m, lb-ft):

140 ~ 160 (14.0 ~ 16.0, 101 ~ 116)

Fig 8: Identifying Lower Arm, Mounting Fork And Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Connect the lower arm with the knuckle by tightening the bolts (A).
Tightening torque N.m (kgf.m, lb-ft):

100 ~ 120 (10.0 ~ 12.0, 72 ~ 87)

Fig 9: Identifying Lower Arm Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Connect the tie-rod end with the knuckle and then install the castle nut (A) and split pin.
Tightening torque N.m (kgf.m, lb-ft):

24 ~ 34 (2.4 ~ 3.4, 19 ~ 31)

Fig 10: Identifying Split Pin And Castle Nut
Courtesy of KIA MOTORS AMERICA, INC.
Connect the stabilizer link (A) with the mounting fork and tighten the nut (B).
Tightening torque N.m (kgf.m, lb-ft):

100 ~ 120 (10.0 ~ 12.0, 72 ~ 87)

Fig 11: Identifying Stabilizer Link, Mounting Fork And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Connect the universal joint assembly (B) with the pinion of the steering gear box and then tighten the bolt (A).
Tightening torque N.m (kgf.m, lb-ft):

30 ~ 35 (3.0 ~ 3.5, 22 ~ 25)

Fig 12: Identifying Bolt And Universal Joint Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Connect the power steering return hose (A).

Fig 13: Disconnecting/Connecting Power Steering Return Hose
Courtesy of KIA MOTORS AMERICA, INC.
Connect the power steering pressure tube with the power steering pump by tightening the eye bolt.
Tightening torque N.m (kgf.m, lb-ft):

55 ~ 65 (5.5 ~ 6.5, 40 ~ 47)
Install the front wheel and tire
Tightening torque N.m (kgf.m, lb-ft):

90 ~ 110 (9.0 ~ 11.0, 65 ~ 80)
Bleed power steering system.
