Evaporative And ORVR Emission Control System: Components

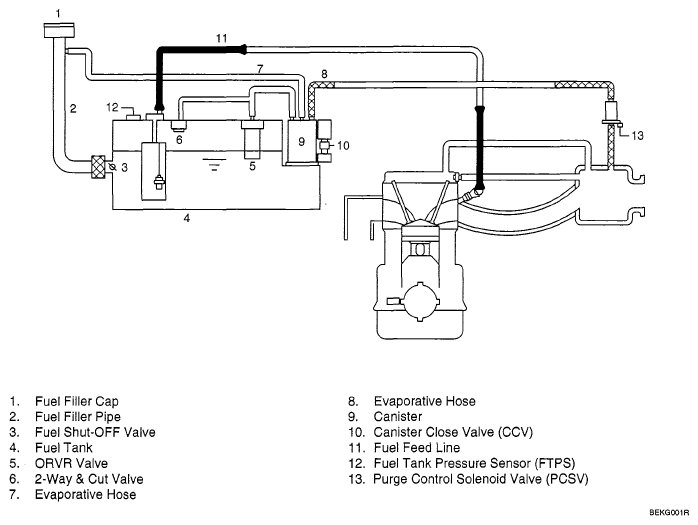

Fig 1: Evaporative And ORVR Emission Control System Diagram

G05116311

Courtesy of KIA MOTORS AMERICA, INC.
